Description
Overview

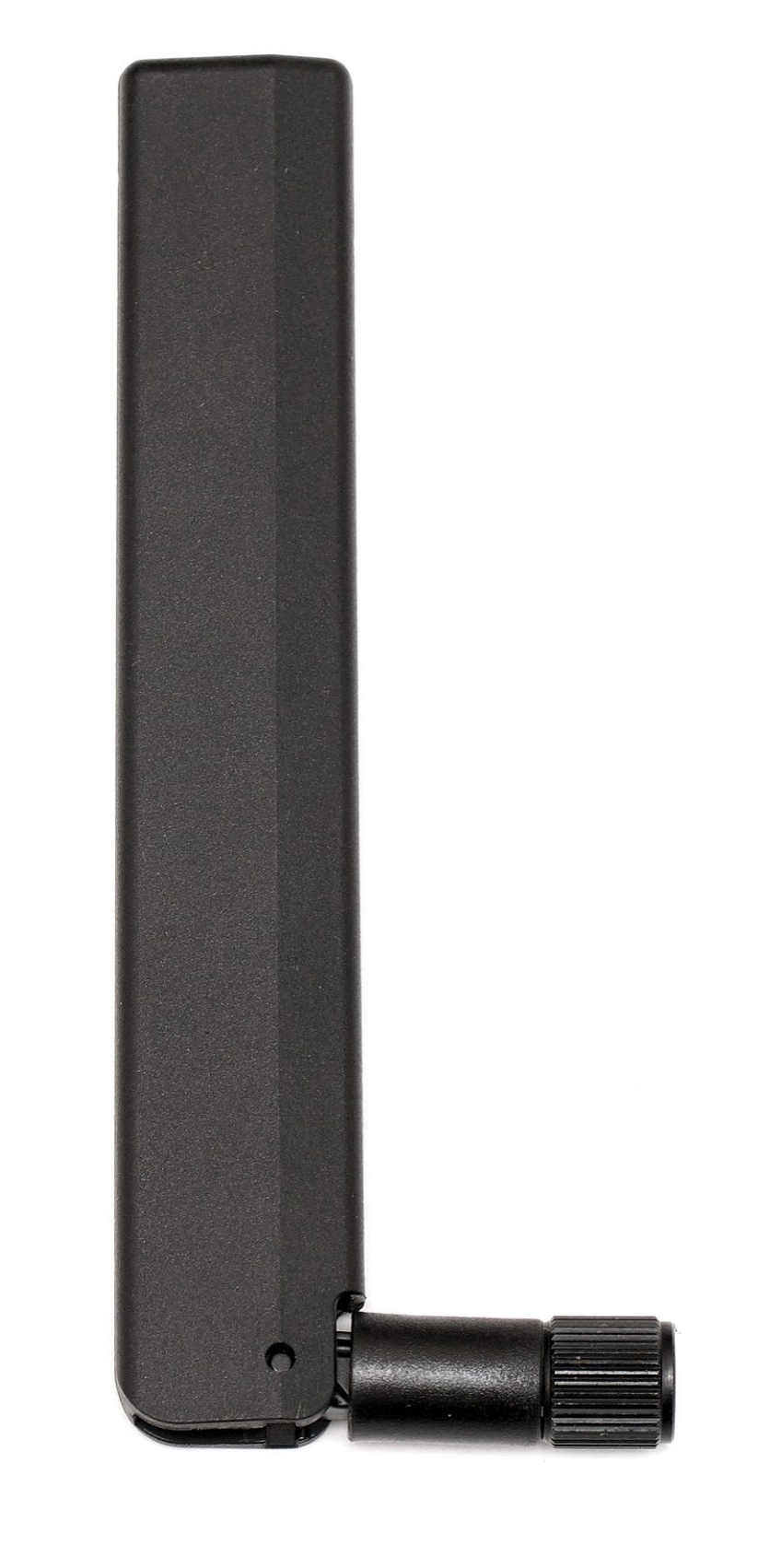

This connector-mount antenna is a robust and reliable solution designed to deliver exceptional positioning accuracy across the globe. It operates on the primary GNSS frequency bands, ensuring compatibility with a wide array of receivers and devices. Built to last, the antenna is housed in a durable ASA radome and is capable of operating in extreme temperatures, providing consistent performance wherever it’s deployed. Its ground plane independent design means it can be installed virtually anywhere without a loss in performance, offering true plug-and-play convenience
Key Features
- Universal GNSS Compatibility: Receives signals from all major constellations: GPS, GLONASS, BeiDou, QZSS, and Galileo.
- Exceptional Signal Reception: Features outstanding efficiency of up to ~73.4% and a peak gain of ~2.6 dBi, resulting in faster satellite acquisition and a more stable position lock.

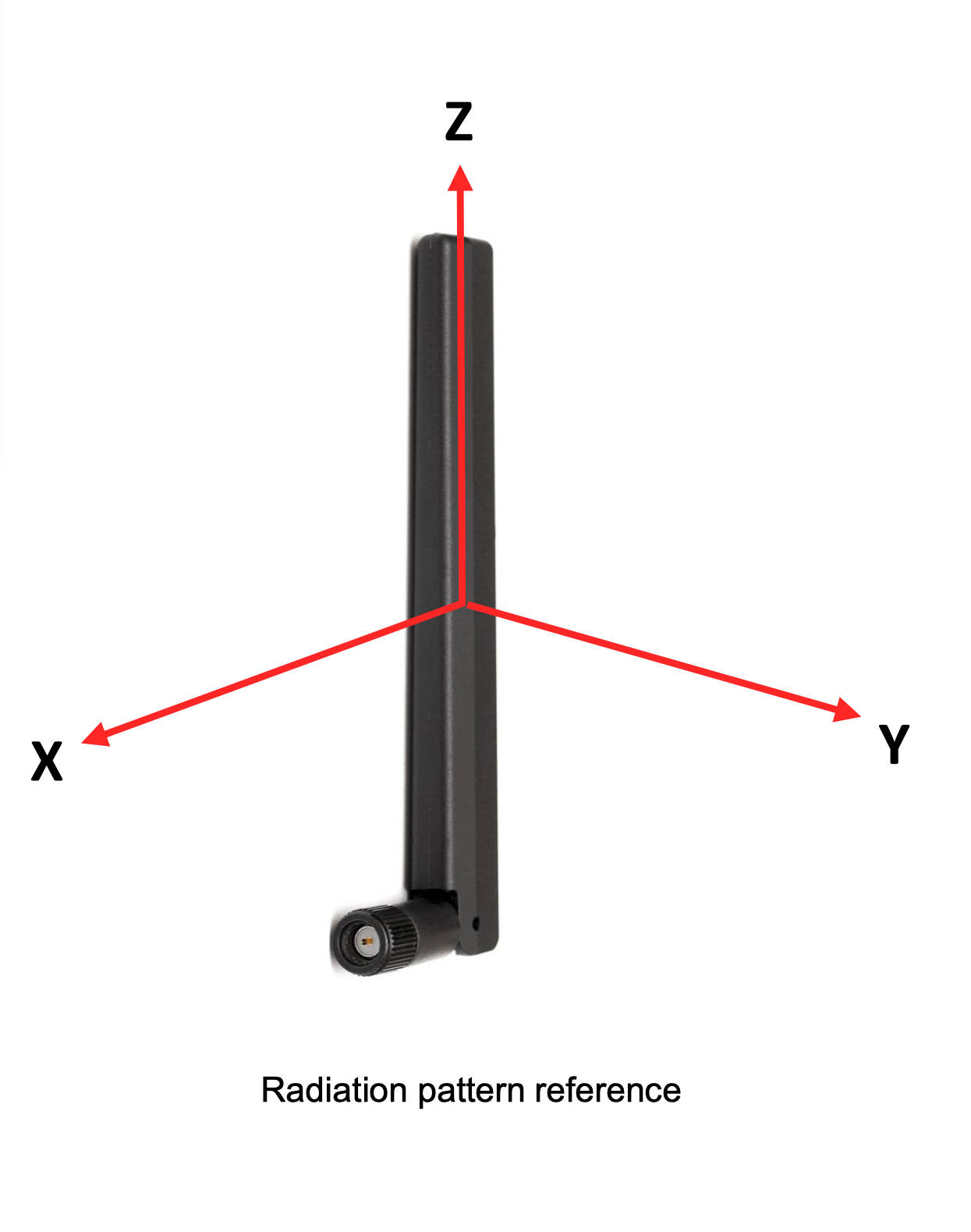

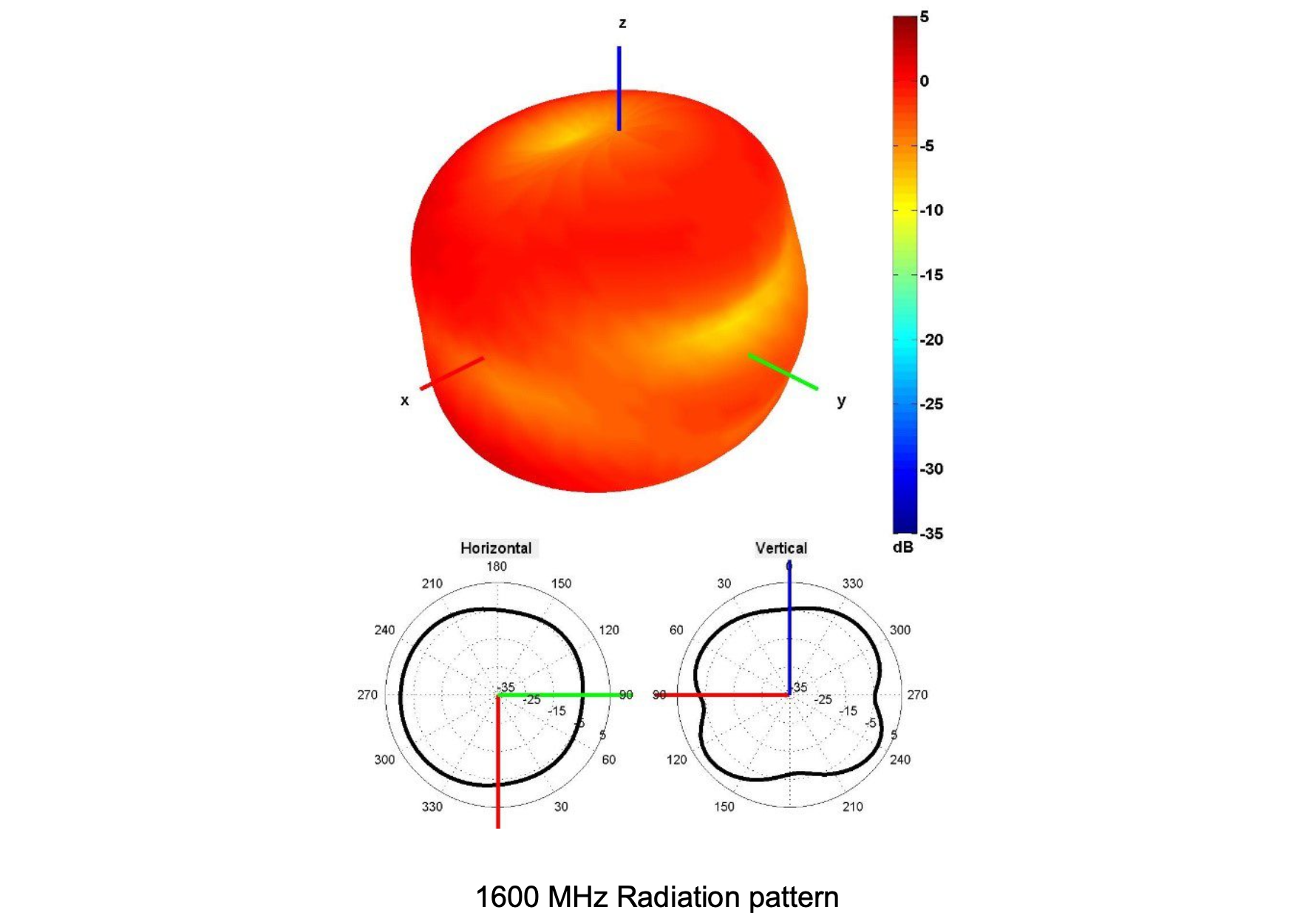

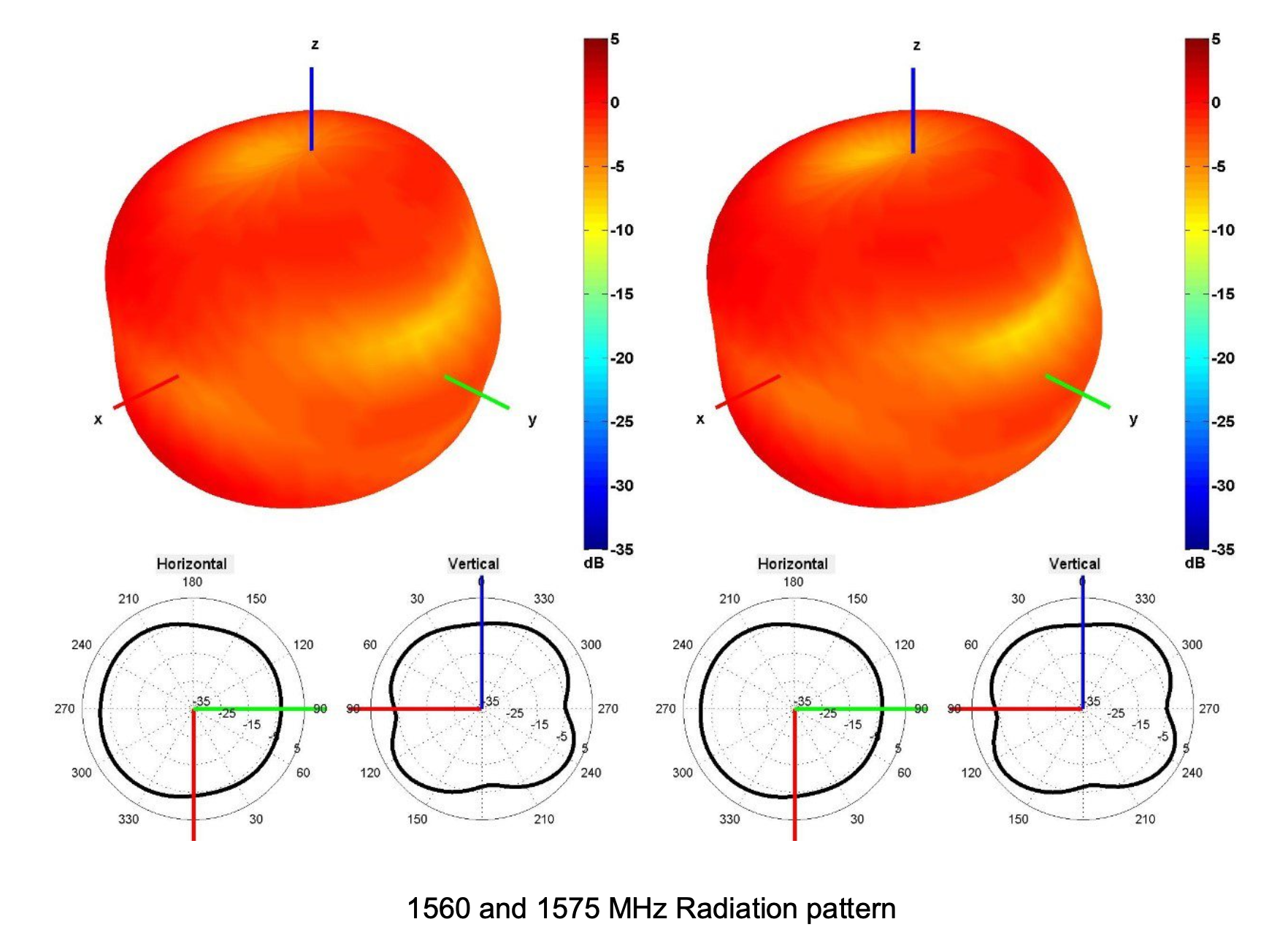

- Omni-Directional Pattern: The omni-directional radiation pattern allows the antenna to receive signals from 360 degrees, simplifying installation as it does not require aiming.

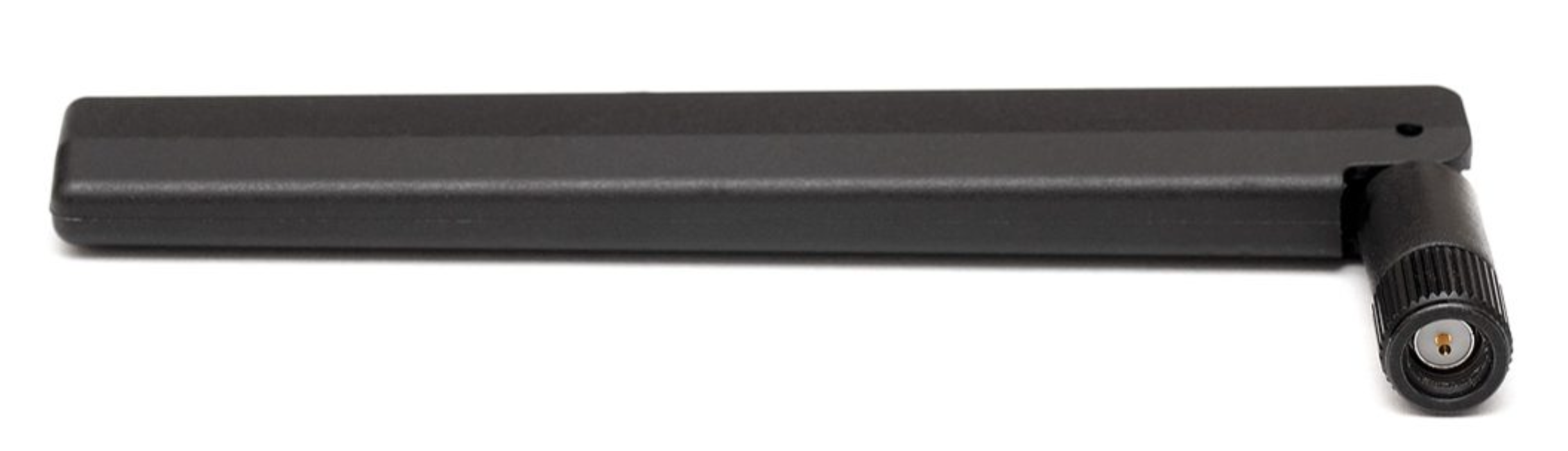

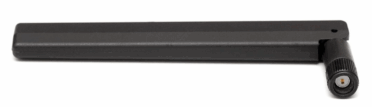

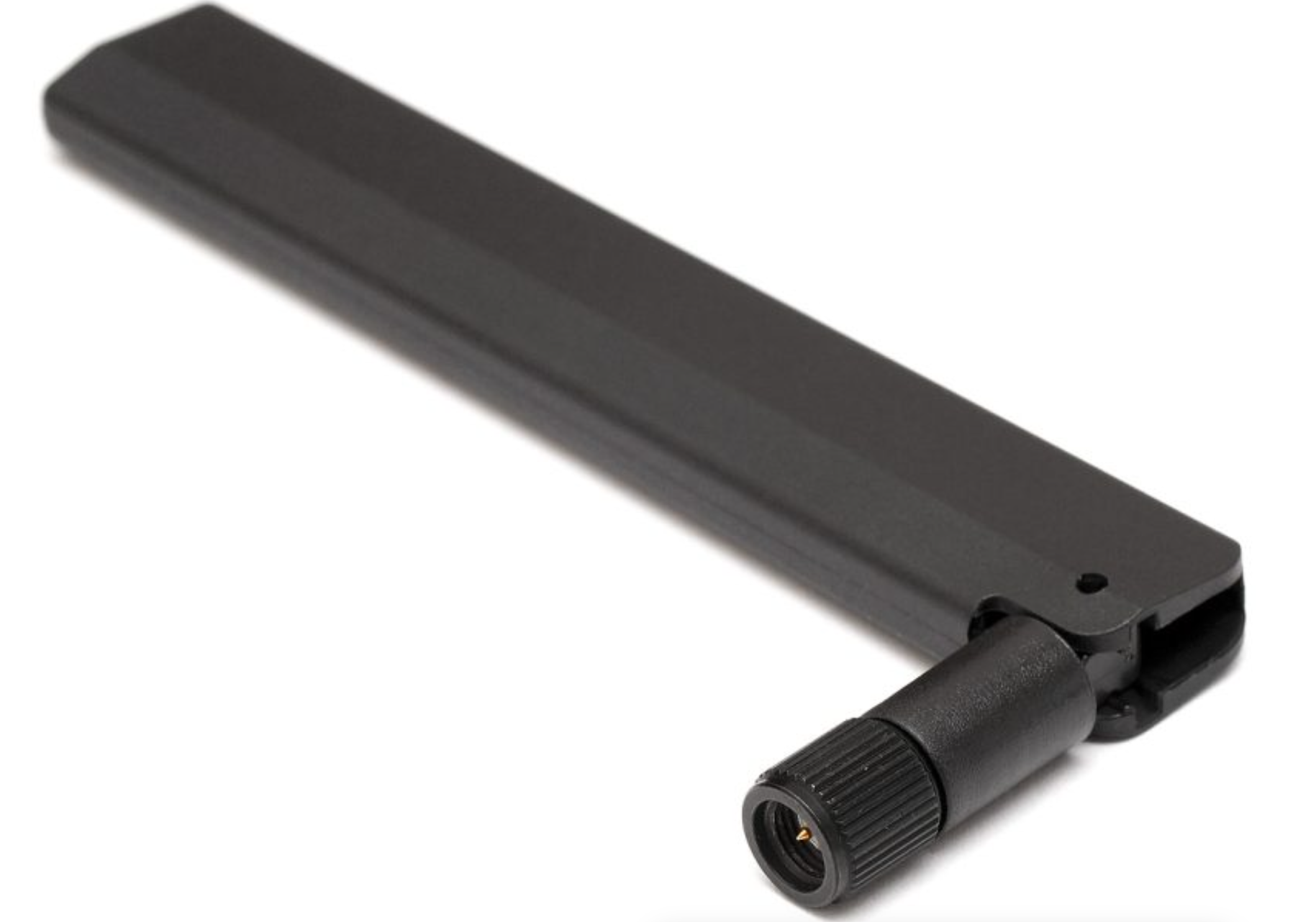

- Flexible Hinged Connector: The integrated hinge allows the antenna to be positioned straight (0°), at a right angle (90°), or at a 45° angle to fit various device layouts and enclosures.
- Durable Construction: The radome is made from black ASA material for environmental protection. The antenna is rated for a wide operating temperature range from -40°C to +85°C.
Technical Specifications
| Specification | Value |
| Supported Standards | GPS, GLONASS, BeiDou, QZSS, Galileo |
| Frequency Range | 1561-1606 MHz |

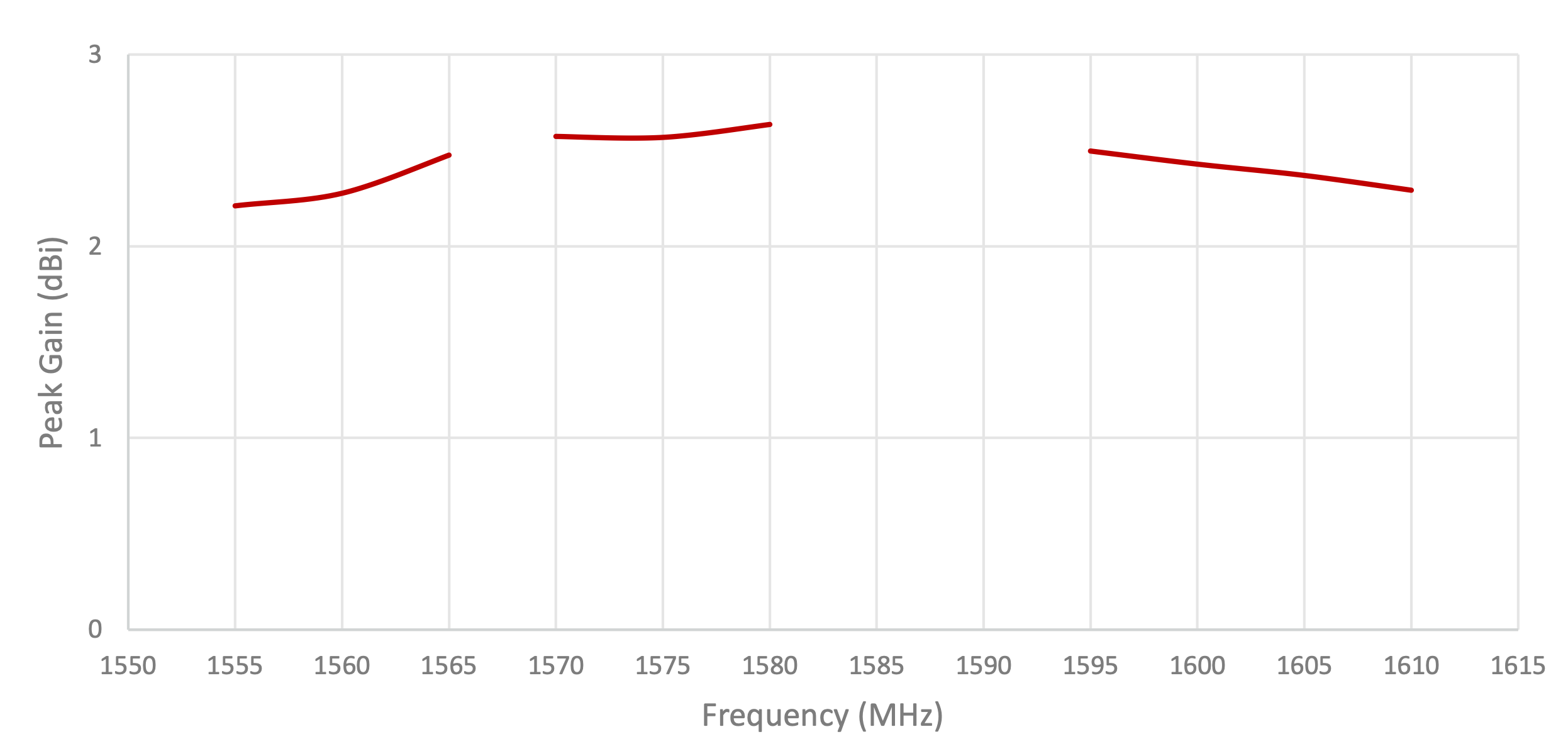

| Peak Gain | Up to ~2.6 dBi |

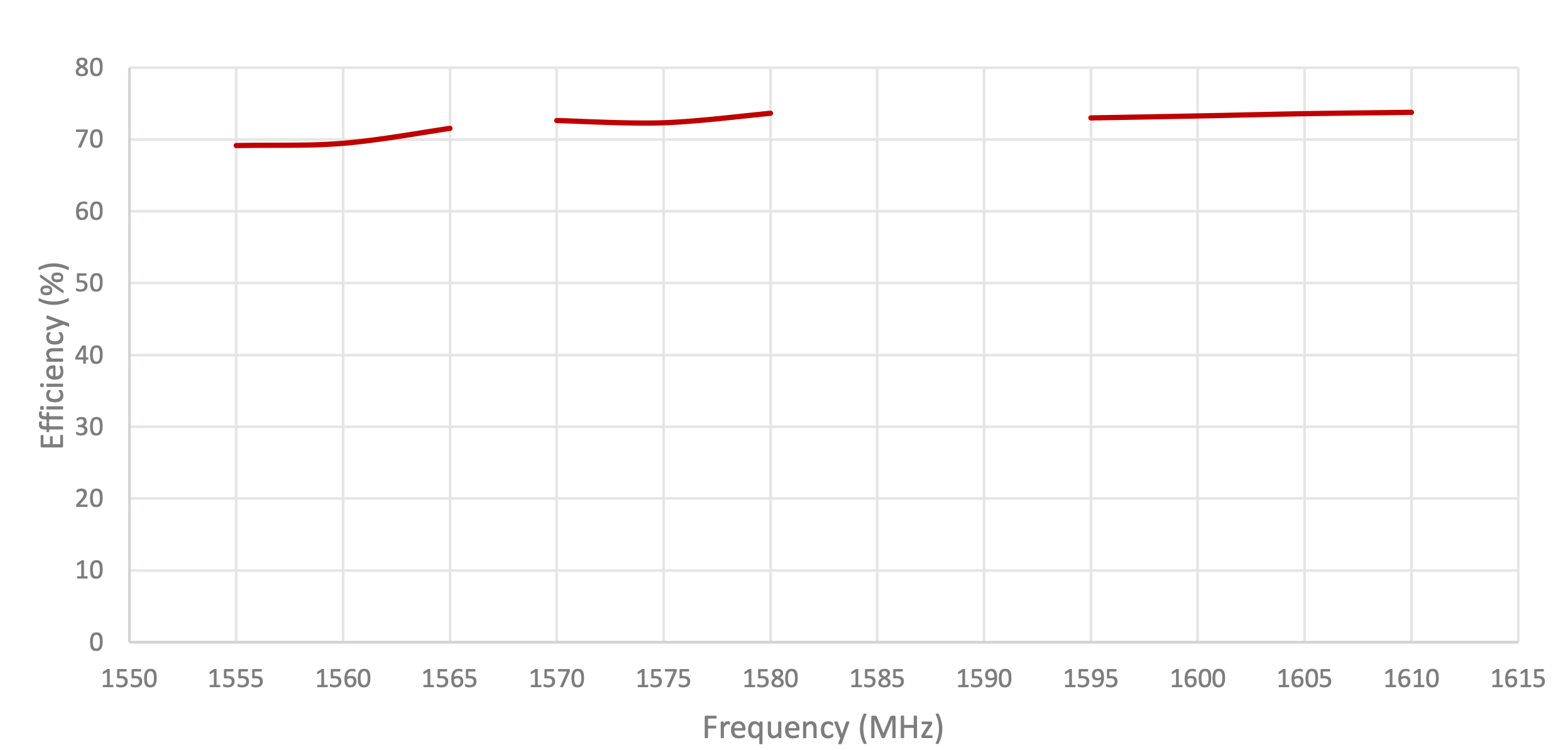

| Efficiency | Up to ~73.4% |

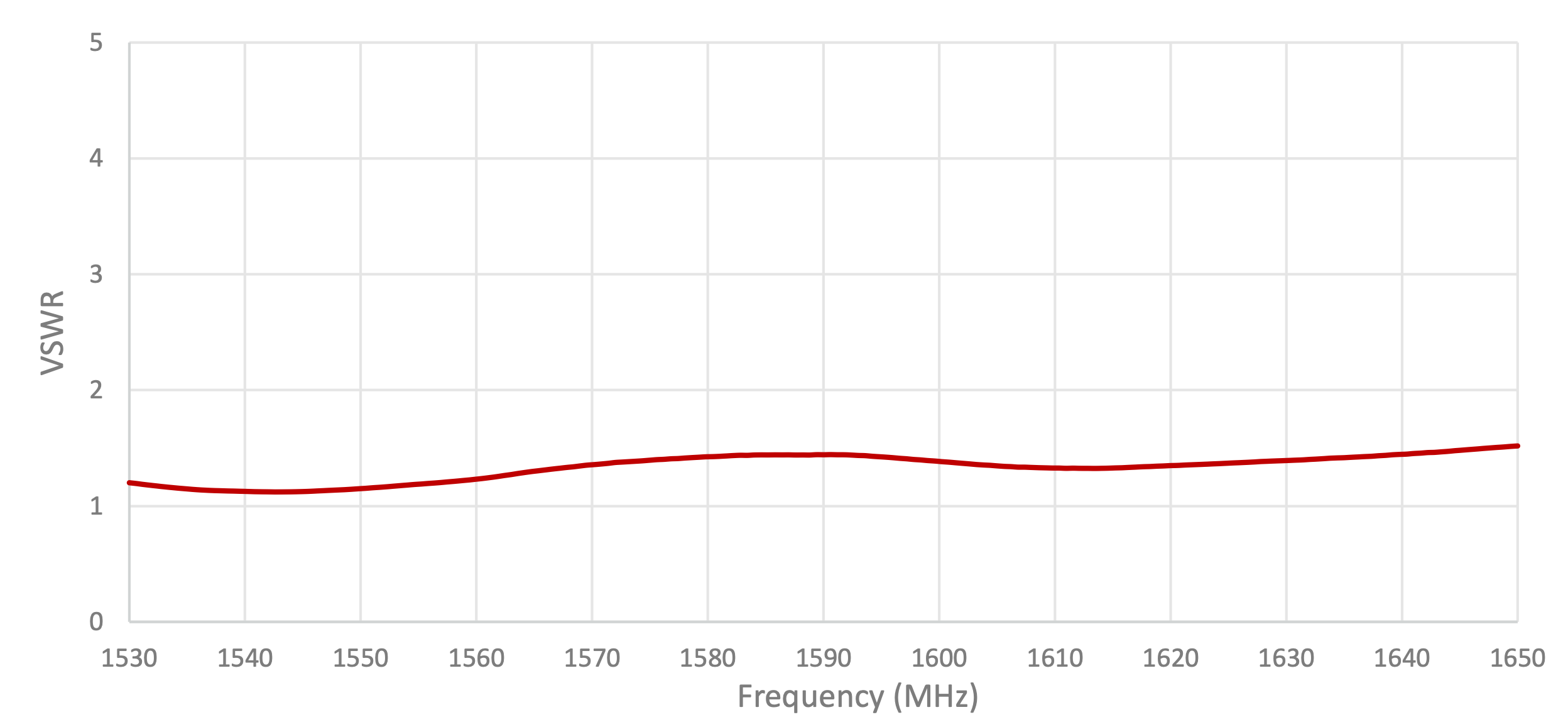

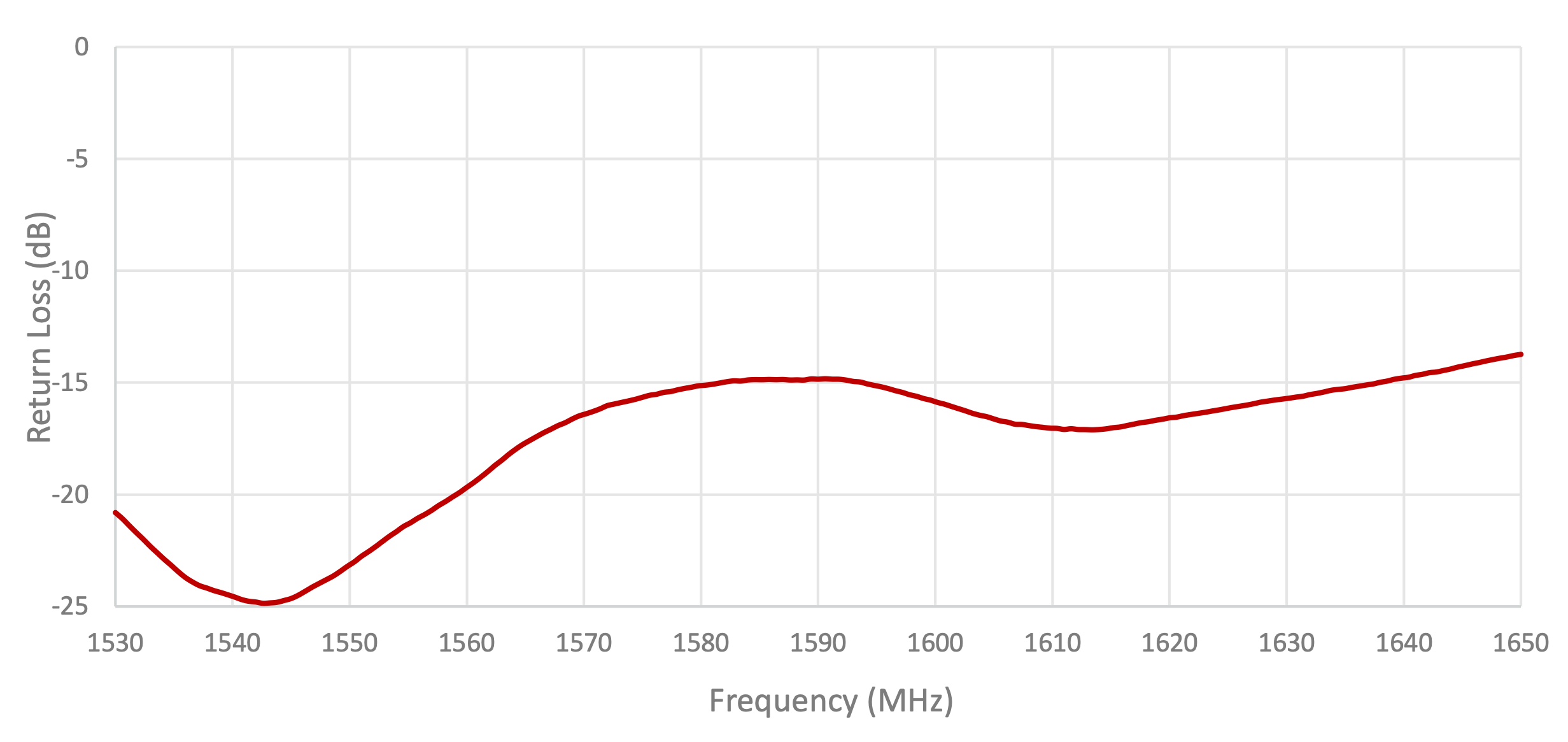

| VSWR | ≤ ~1.4:1 |
| Polarization | Linear |
| Impedance | 50 Ohm |
| Max Input Power | 25 Watts |
| Connector | SMA-Male |
| Mounting Type | Direct Connector Mount |
| Radome Material | ASA |
| Operating Temperature | -40°C to +85°C |
| Dimensions (Straight) | 135 mm x 19 mm x 10 mm |
| Dimensions (Right Angle) | 110 mm (H) x 42 mm (L) |
