Description
Overview
This versatile antenna is engineered to provide a significant boost to your wireless communications. By supporting the 6 GHz band, it allows WiFi 6E/ WiFi 7 compatible devices to operate in a less congested spectrum, resulting in higher throughputs and lower latency—ideal for streaming, gaming, and demanding network applications. Its ground plane independent design ensures consistent, high-level performance regardless of the mounting surface. The antenna is also backwards-compatible and supports a variety of other ISM band standards, including Bluetooth and ZigBee, making it a flexible choice for any project.
Key Features
- Tri-Band WiFi 6E/7 Support: Operates on 2.4 GHz (2410-2490 MHz), 5.0 GHz (4920-5925 MHz), and 6.0 GHz (5925-7125 MHz) bands for comprehensive wireless coverage.
- High-Gain Performance: Achieves a peak gain of up to ~4.1 dBi on the 2.4 GHz band, extending the range and improving the stability of your wireless connection.
- Exceptional Efficiency: With efficiency reaching up to ~84.5%, it ensures minimal signal loss and maximum signal strength for your devices.

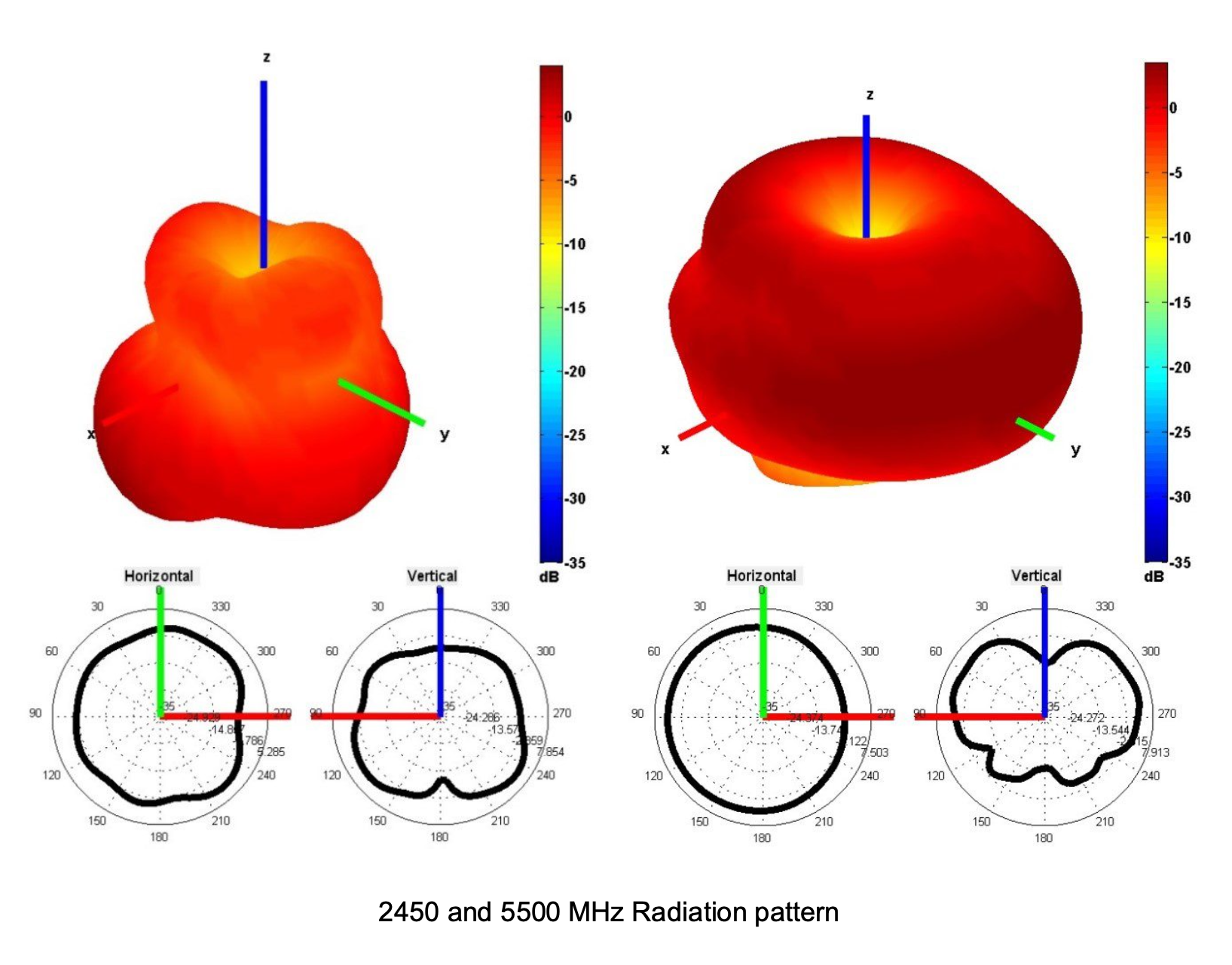

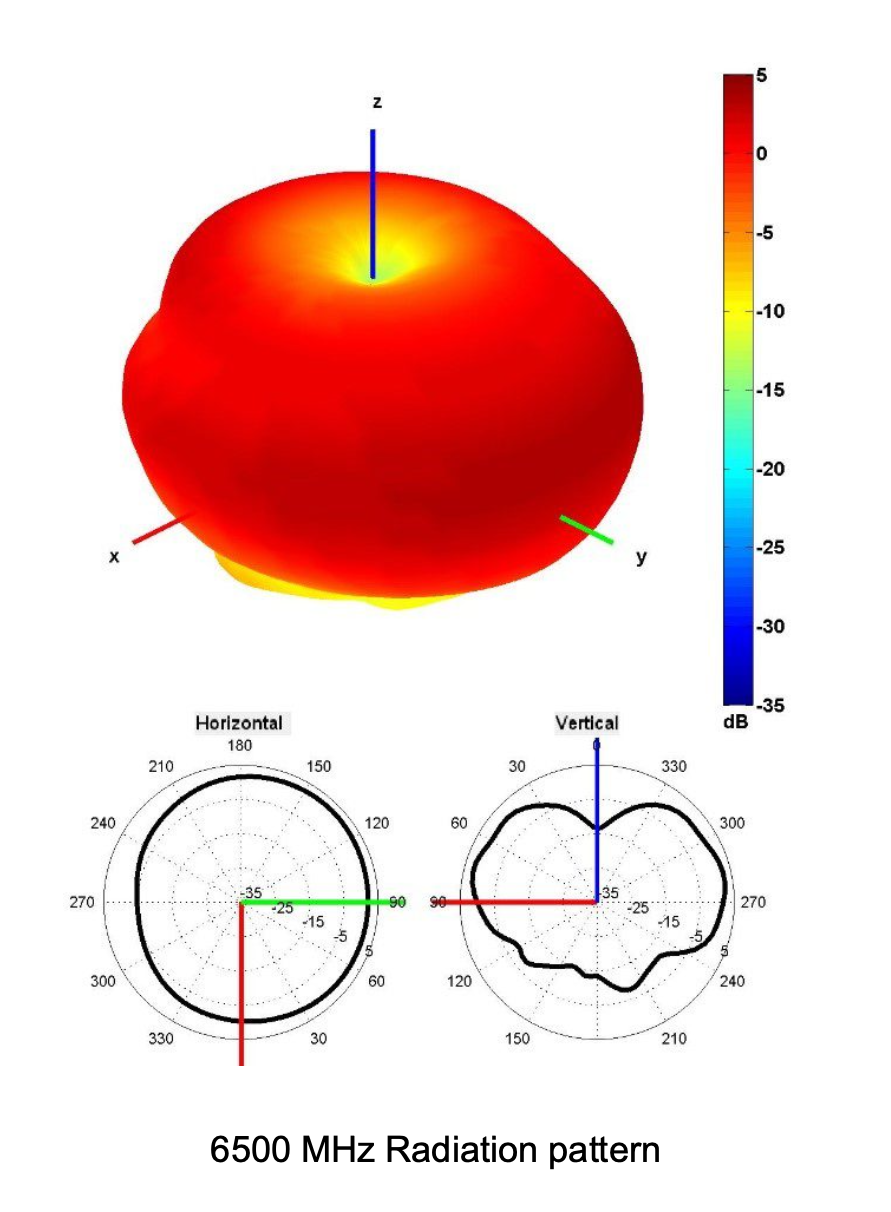

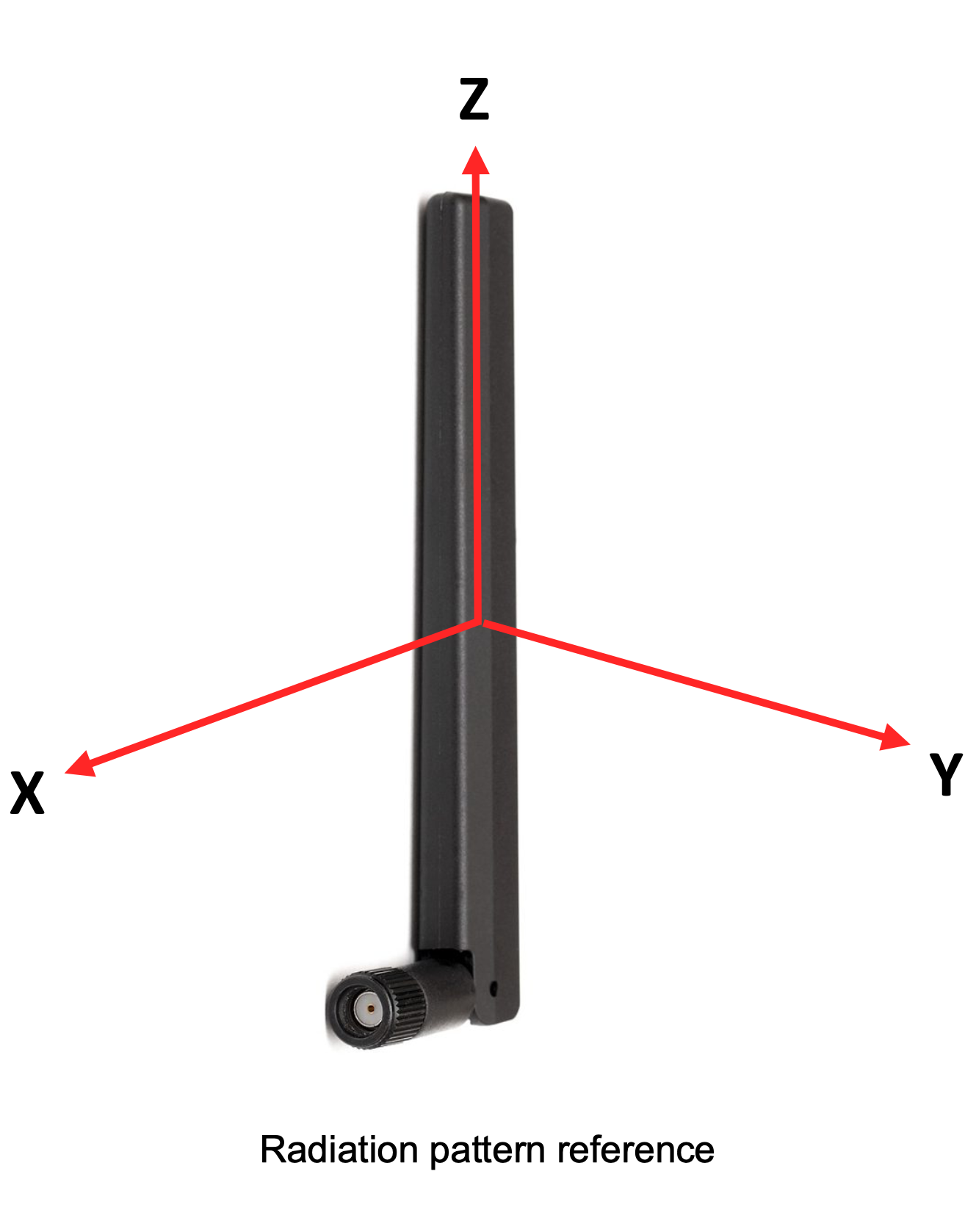

- Omni-Directional Coverage: The omni-directional radiation pattern provides a 360-degree signal, ensuring reliable connectivity in all directions without requiring precise aiming.

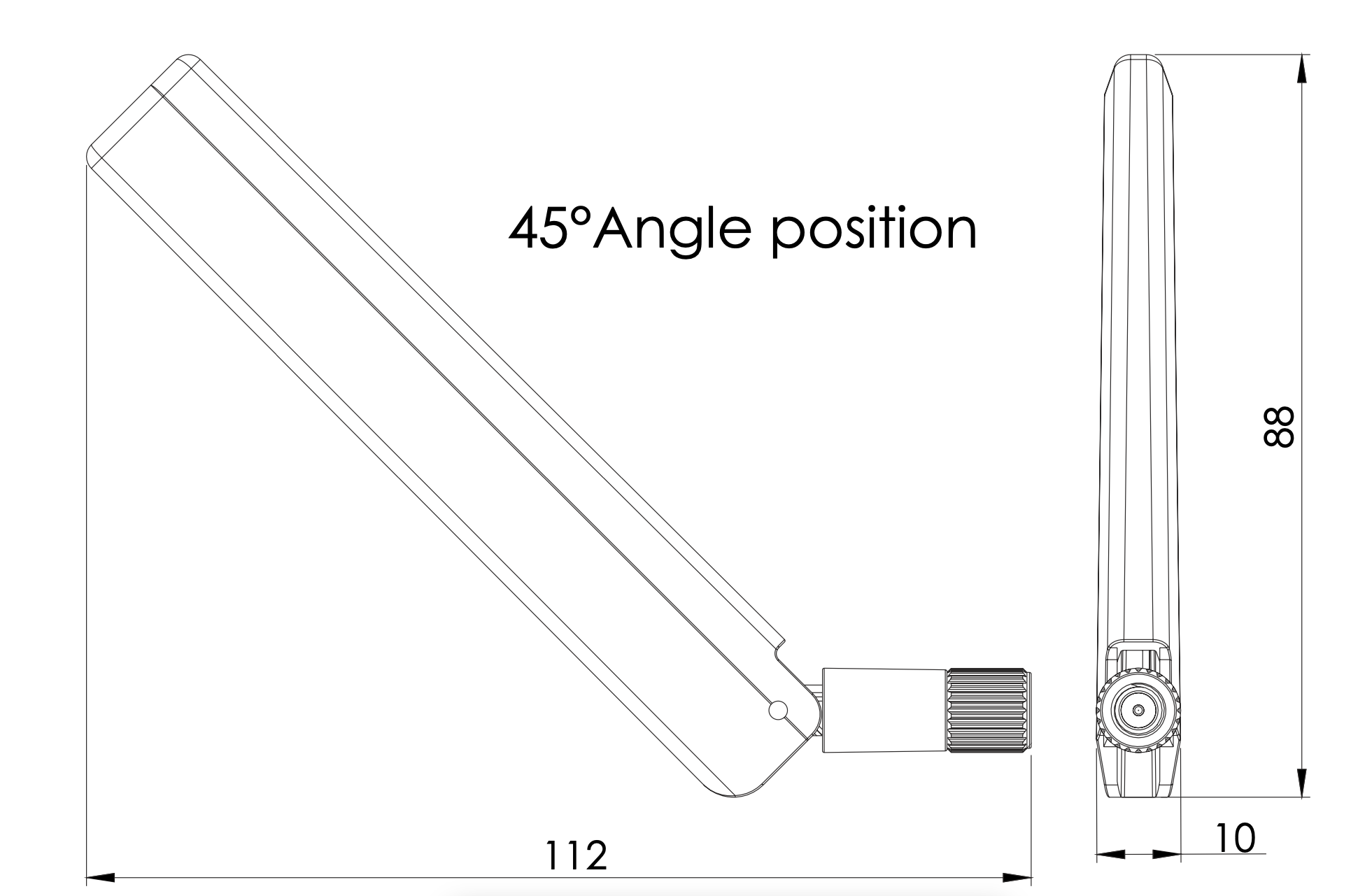

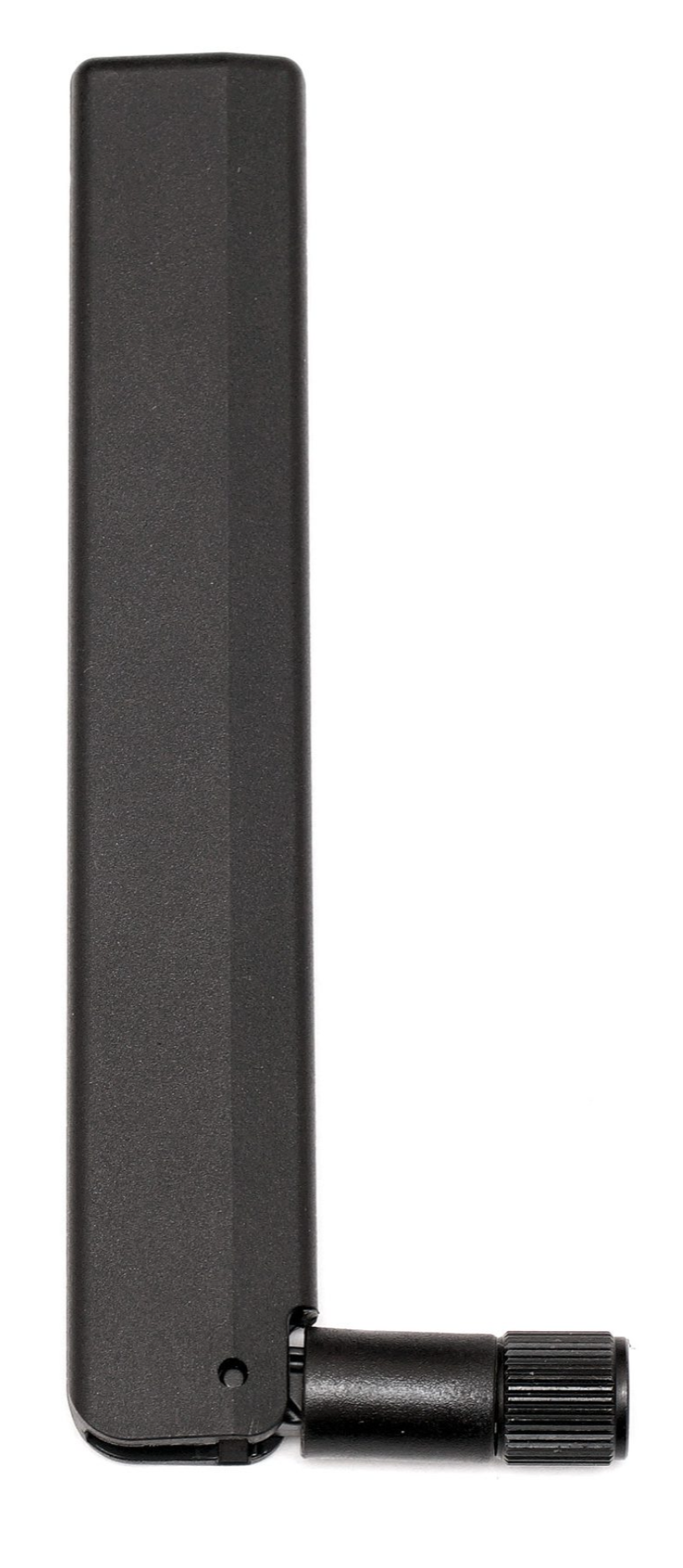

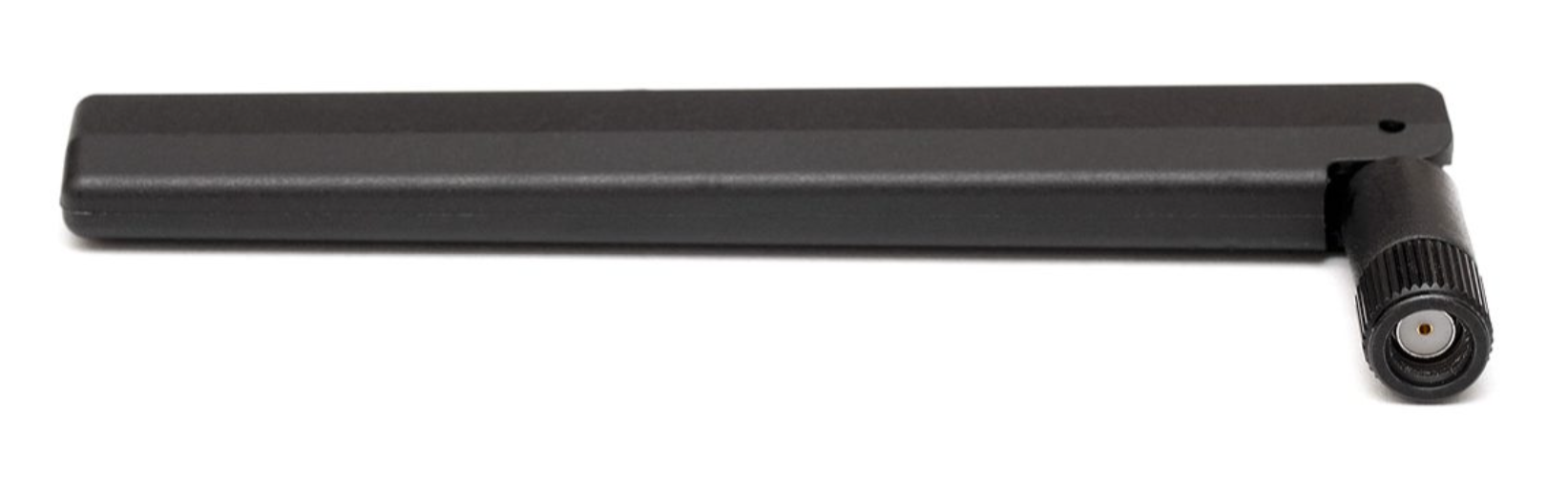

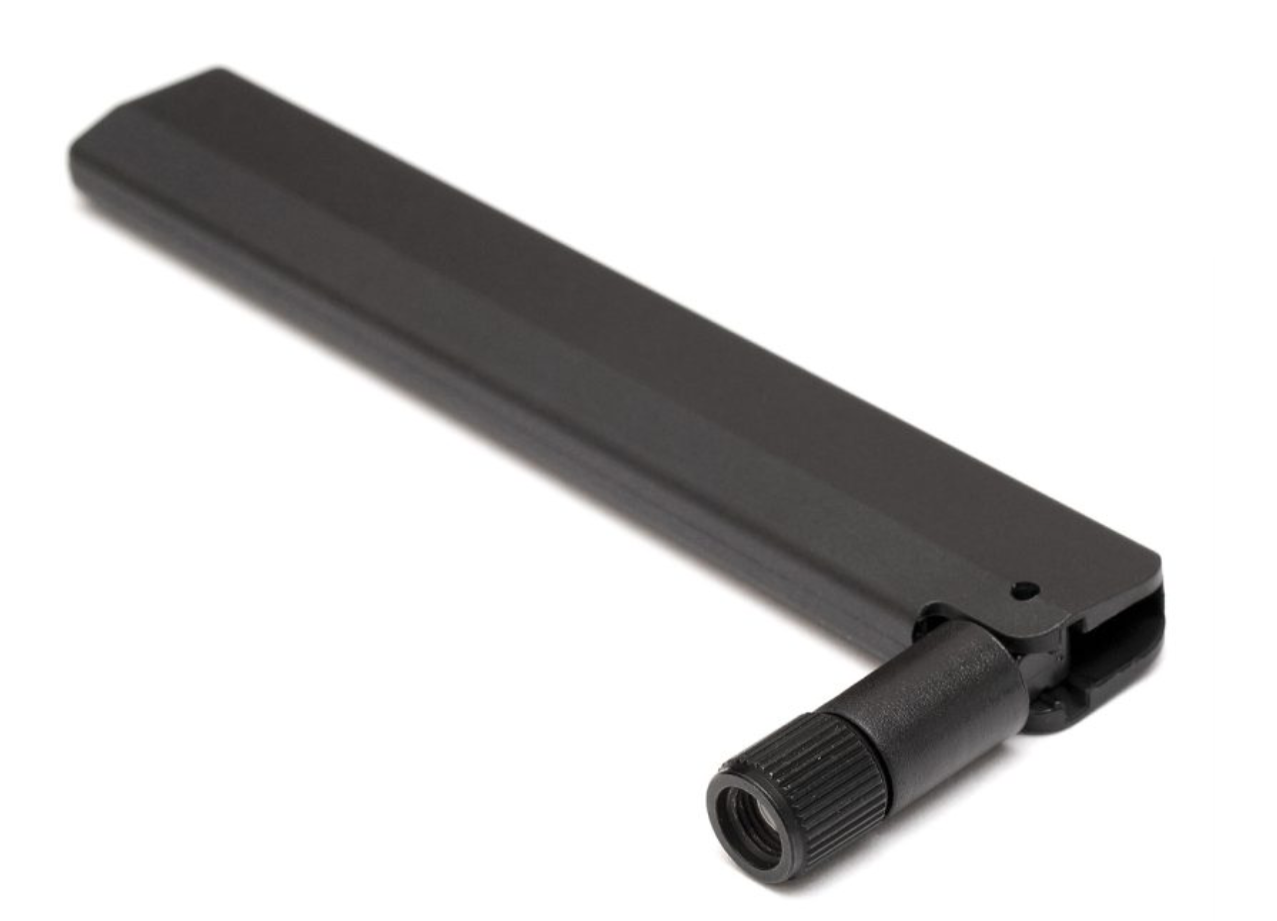

- Flexible Hinged Connector: Features a standard RP-SMA-Male connector with a hinge, allowing the antenna to be positioned straight, at a 90-degree angle, or in between for optimal placement.
- Durable Construction: Built with a UV-stable ABS radome and rated for a wide operating temperature range of -40°C to +85°C for reliable performance indoors and outdoors.
Technical Specifications
| Specification | Value |
| Supported Standards | WiFi 6E, BT, ZigBee, ISM, SigFox, LoRa |
| Frequency Range | 2410-2490 MHz, 4920-5925 MHz, 5925-7125 MHz |

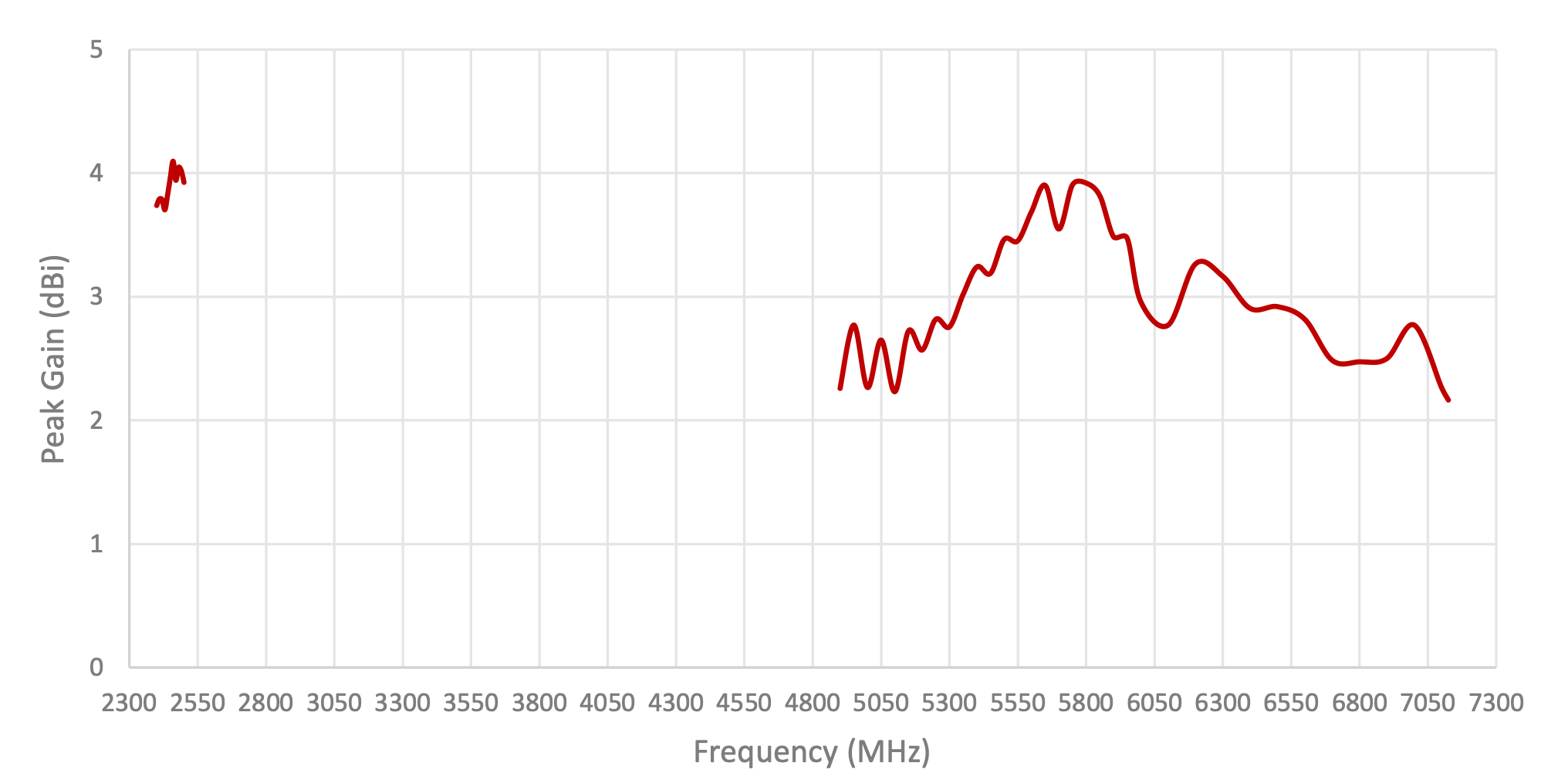

| Peak Gain | Up to ~4.1 dBi on 2.4 GHz, ~3.9 dBi on 5.0 GHz, ~2.8 dBi on 6.0 GHz |

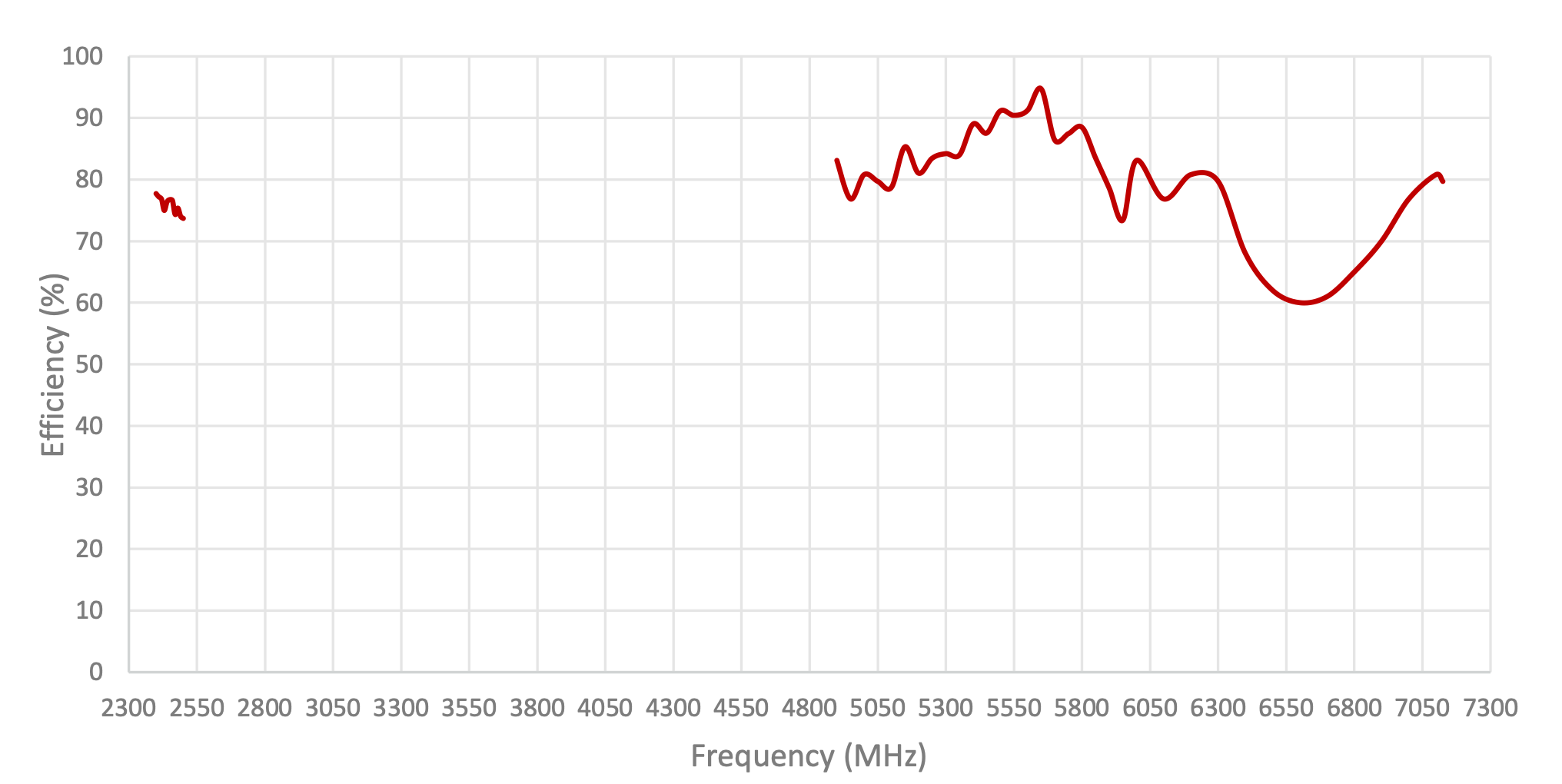

| Efficiency | Up to ~75.8% on 2.4 GHz, ~84.5% on 5.0 GHz, ~73% on 6.0 GHz |

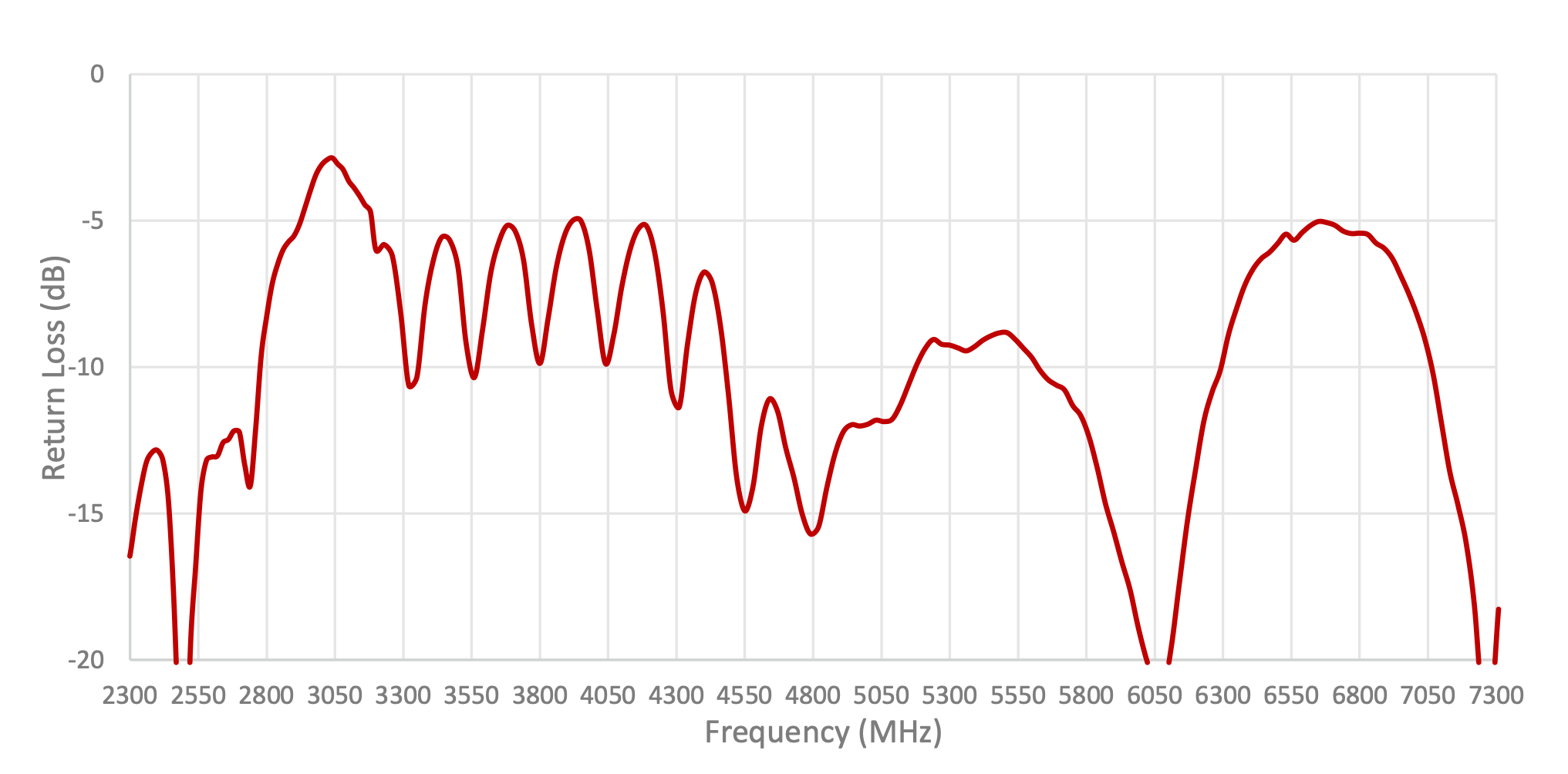

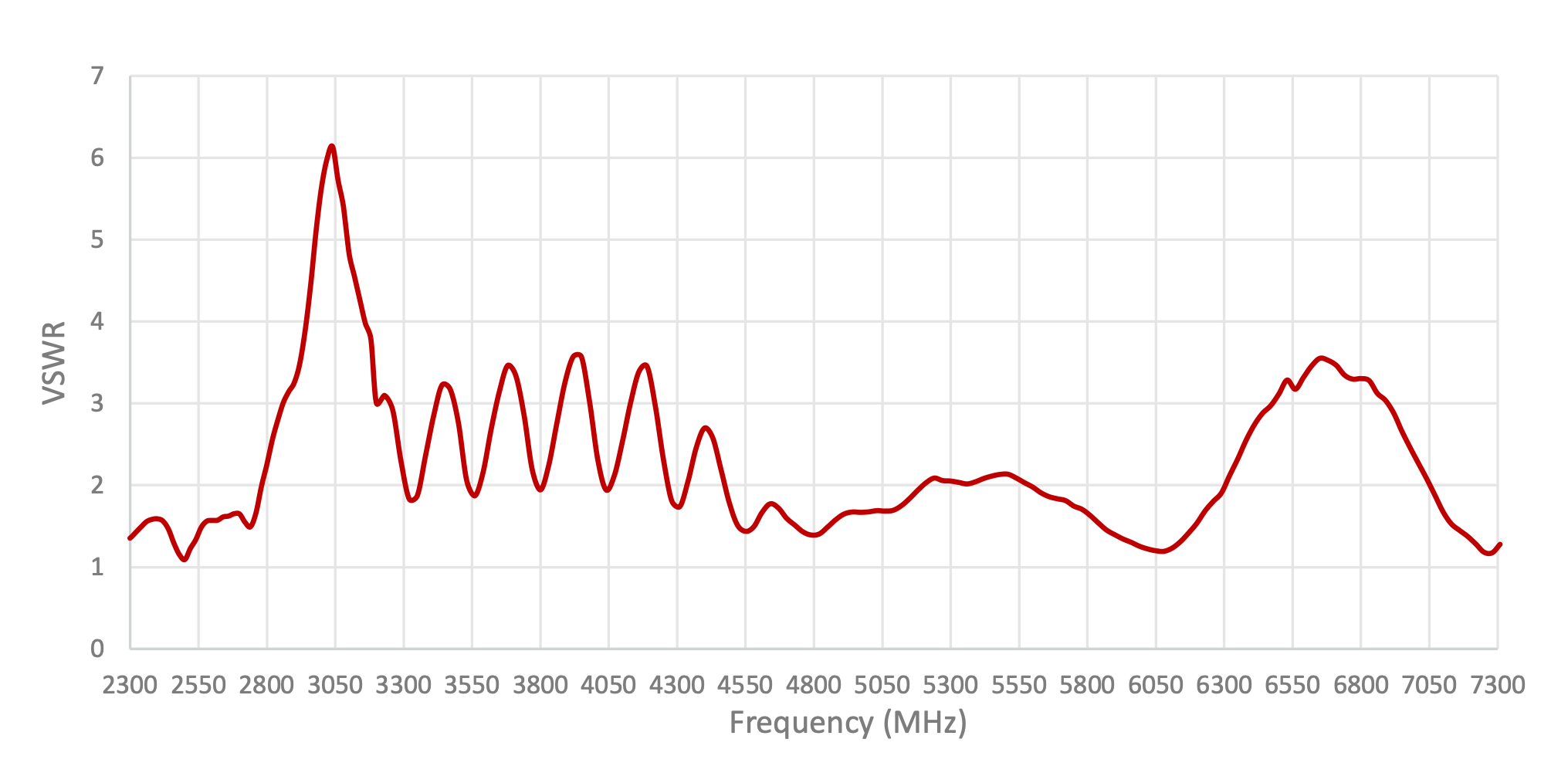

| VSWR | ≤ ~1.4:1 on 2.4 GHz, ≤ ~1.7:1 on 5.0 GHz, ≤ ~2.0:1 on 6.0 GHz, |
| Polarization | Linear |
| Impedance | 50 Ohm |
| Max Input Power | 25 Watts |

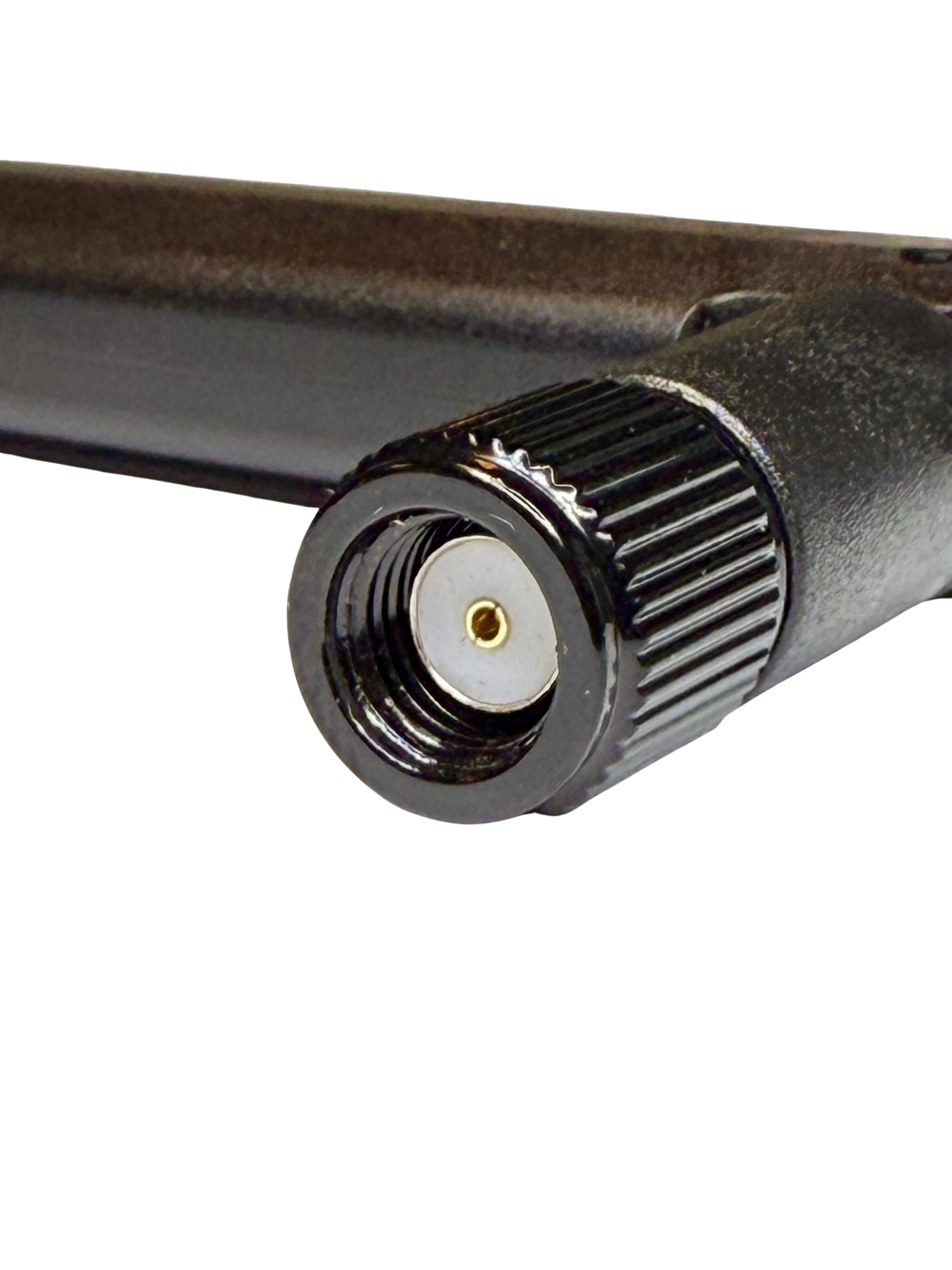

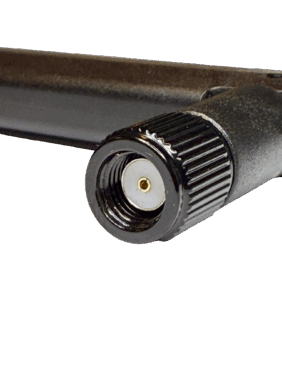

| Connector | RP-SMA-Male Standard |
| Radome Material | ABS UV Stable |
| Operating Temperature | -40°C to +85°C |

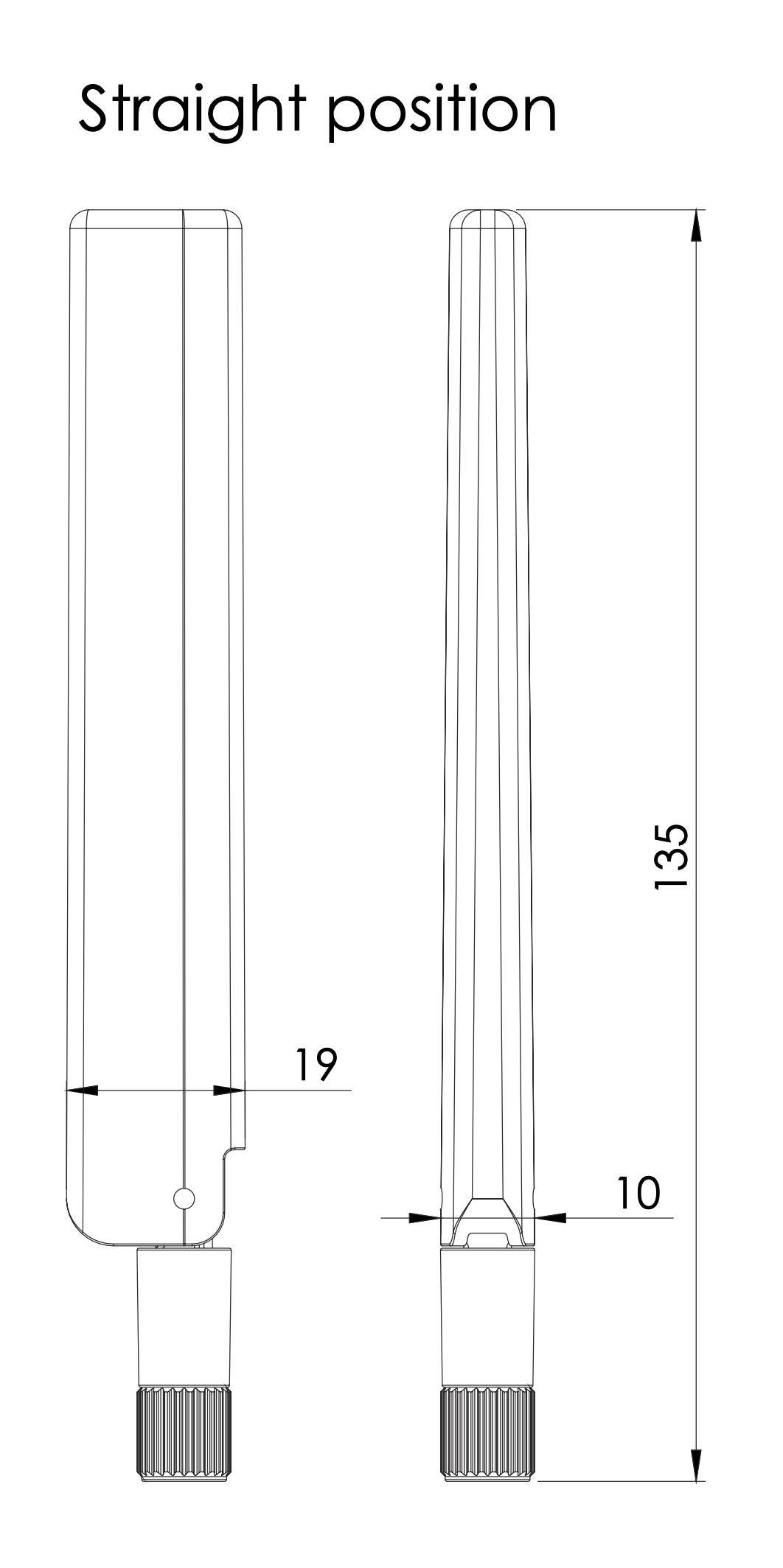

| Dimensions (Straight) | 135 mm x 19 mm x 10 mm |

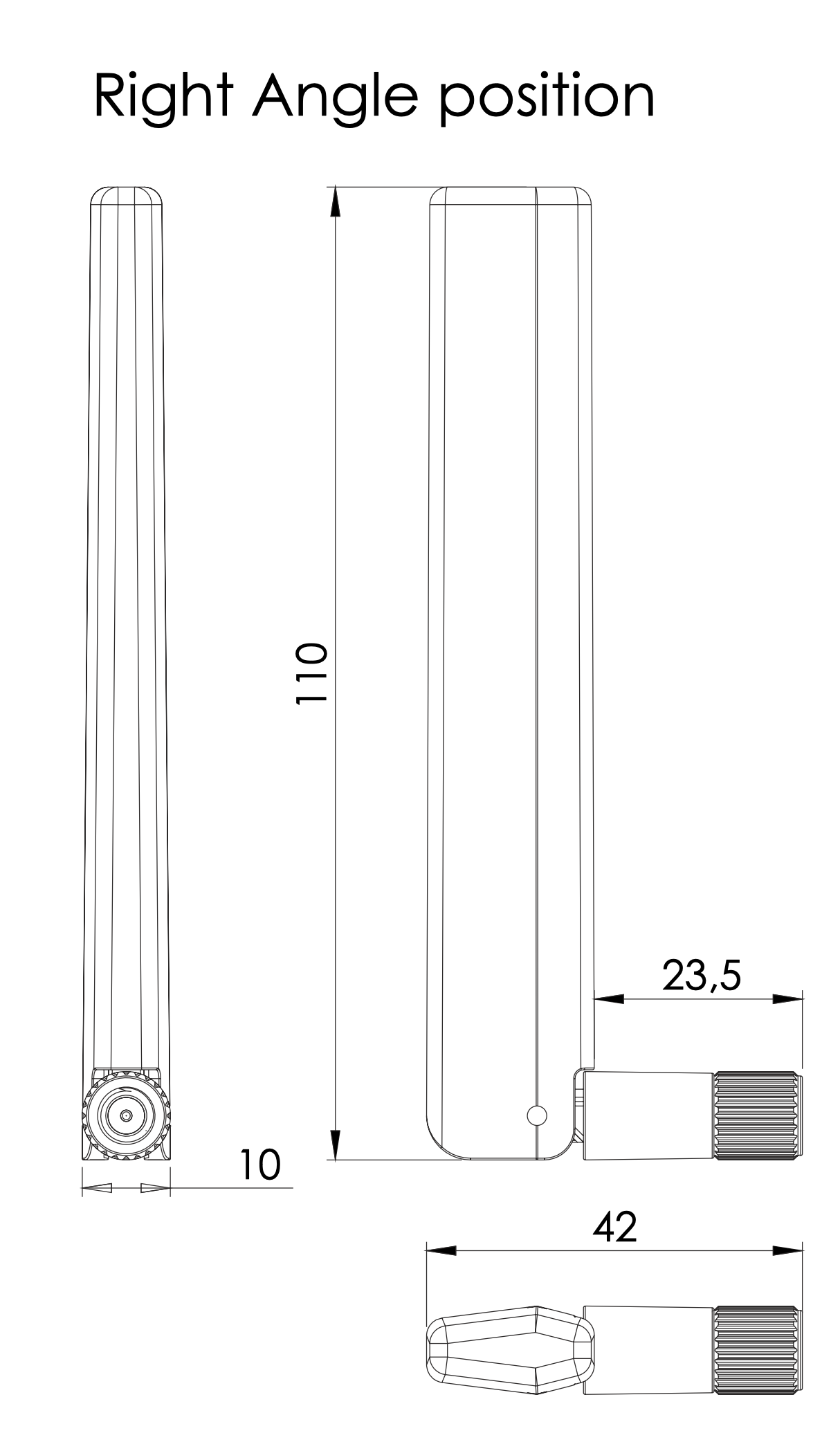

| Dimensions (Right Angle) | 110 mm (H) x 42 mm (L) |
