Description
Overview
This versatile and powerful connector-mount antenna is engineered to deliver consistent and reliable performance for a wide range of wireless applications. It supports all major cellular standards, including 5GNR, 4G LTE, 3G, and 2G, ensuring backward and forward compatibility for your devices. The antenna’s robust, UV-stable housing and wide operating temperature range make it suitable for deployment in demanding environments.
Key Features
- Broad Cellular Compatibility: Fully supports 5G, 4G LTE, 3G, and 2G technologies, as well as CBRS, LPWA, and NB-IoT standards.
- Ultra-Wide Frequency Support: Operates across all key cellular bands from 617 MHz to 5925 MHz, ensuring comprehensive global coverage.

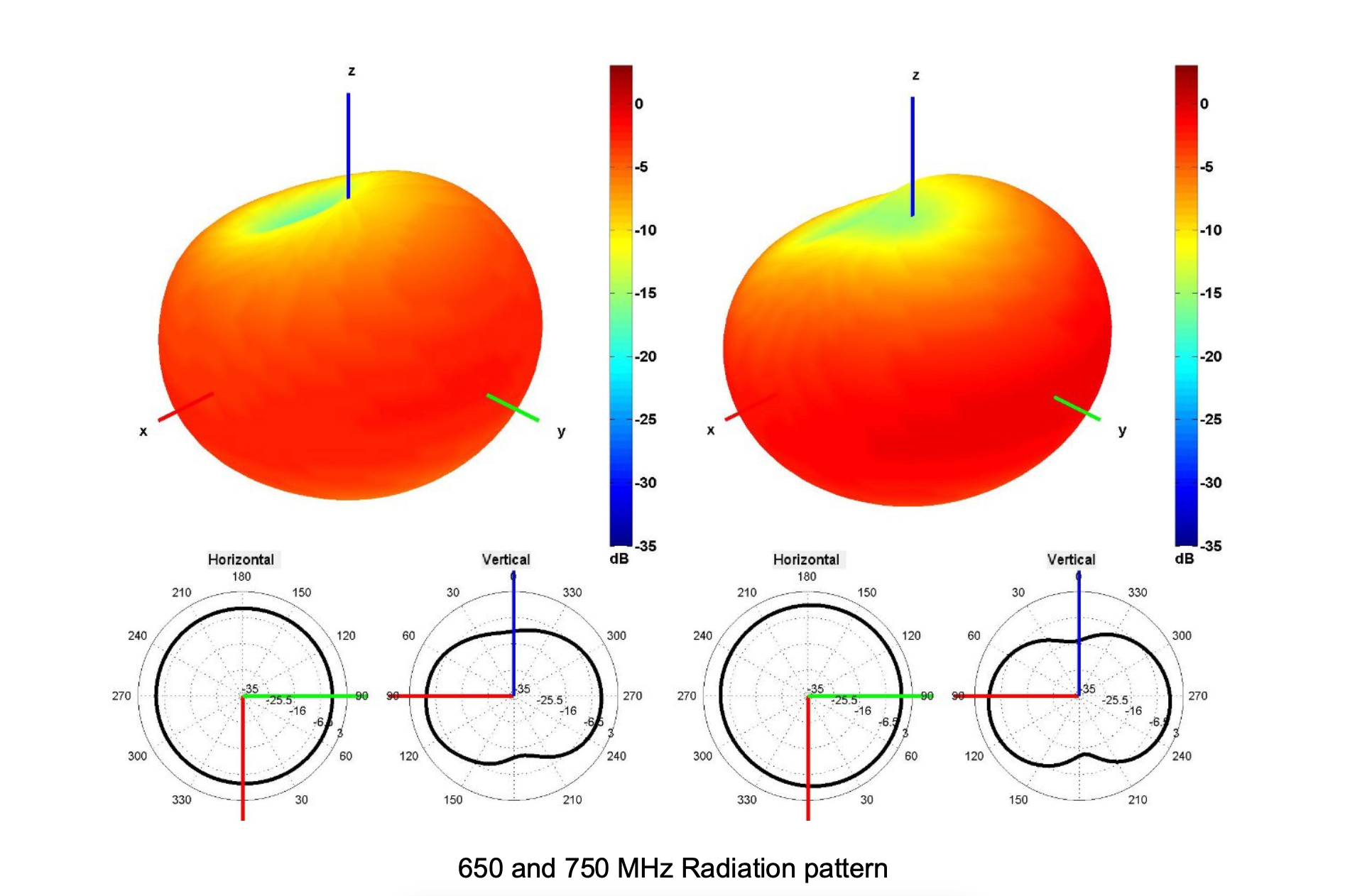

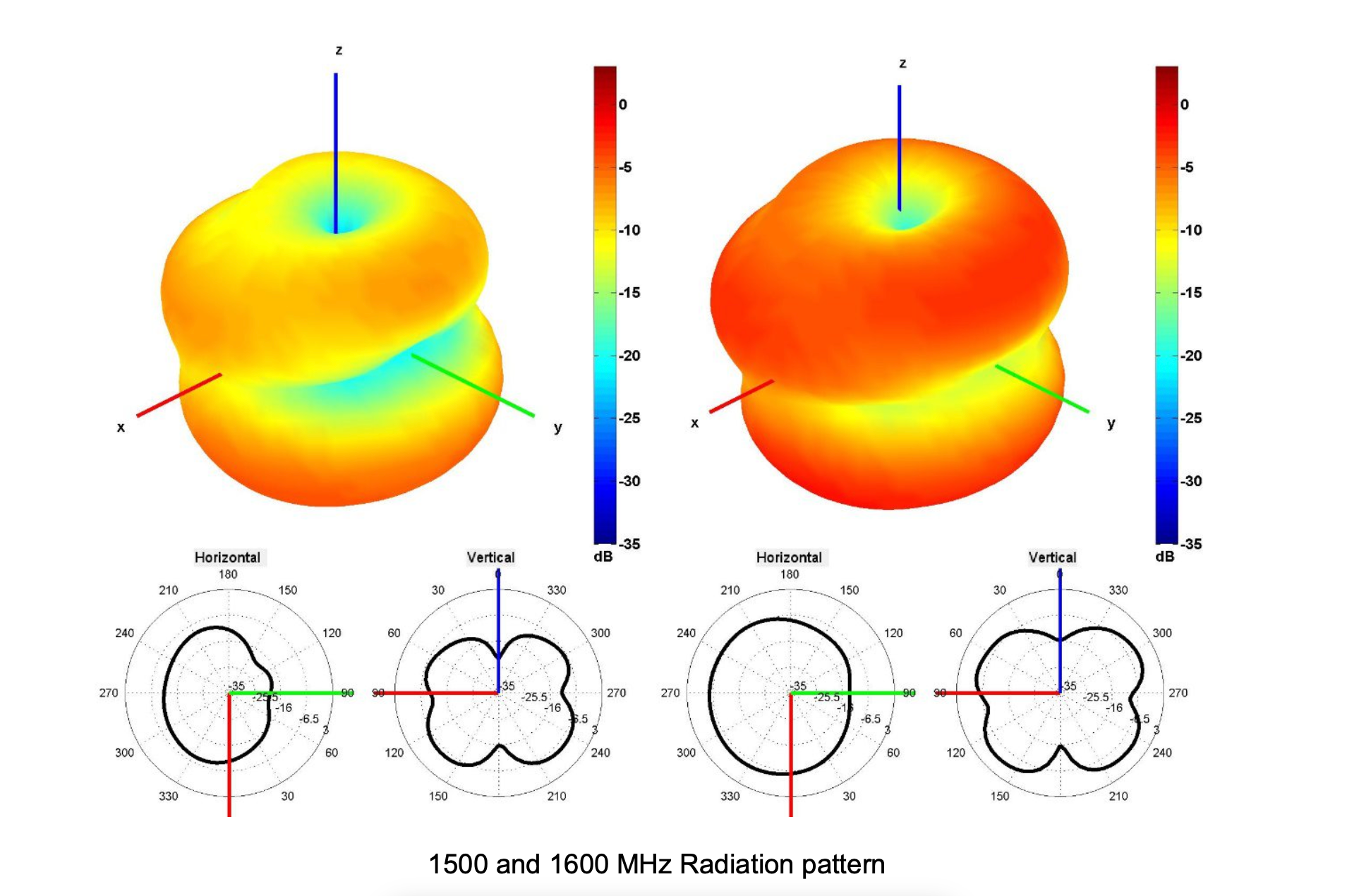

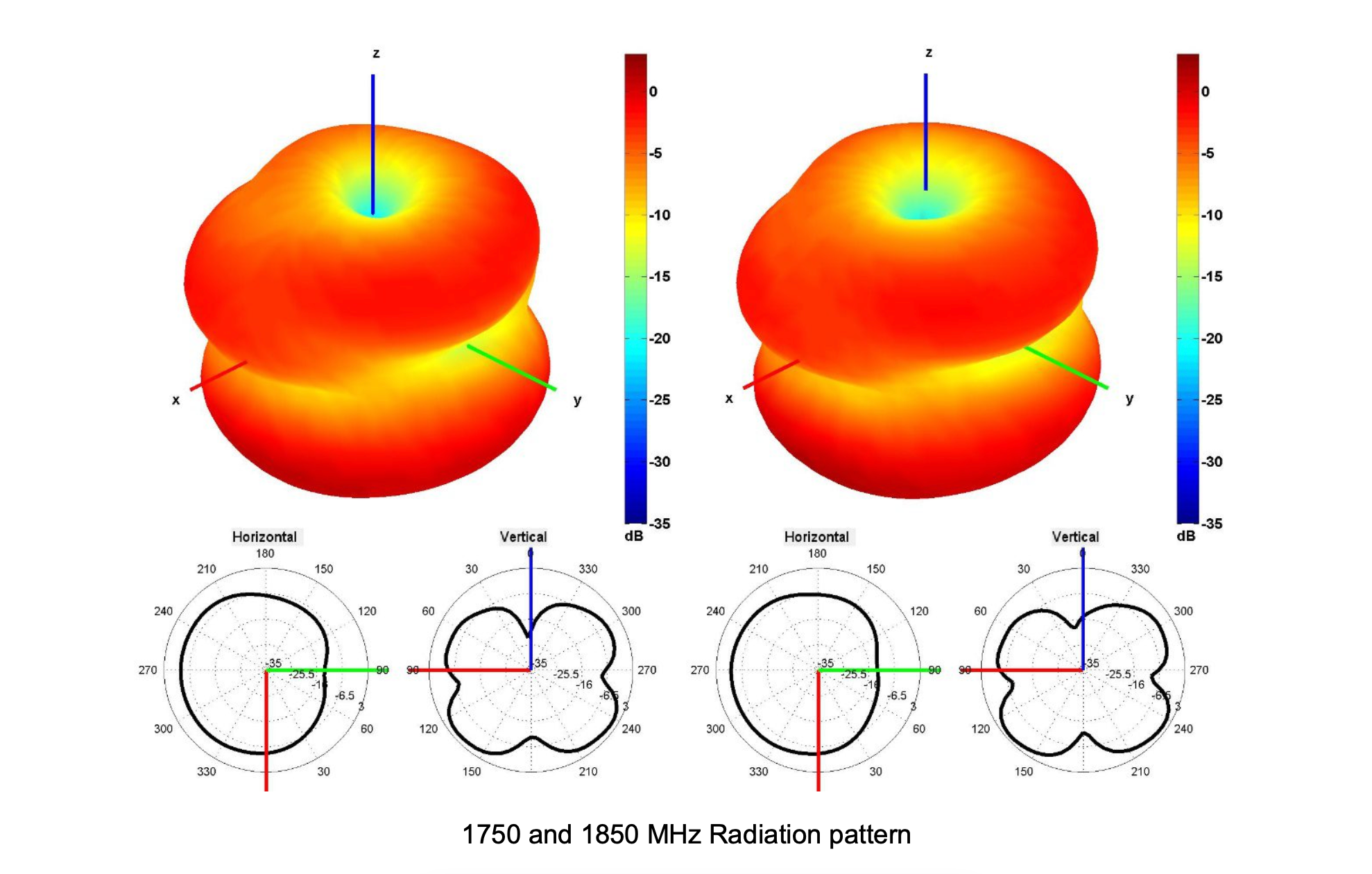

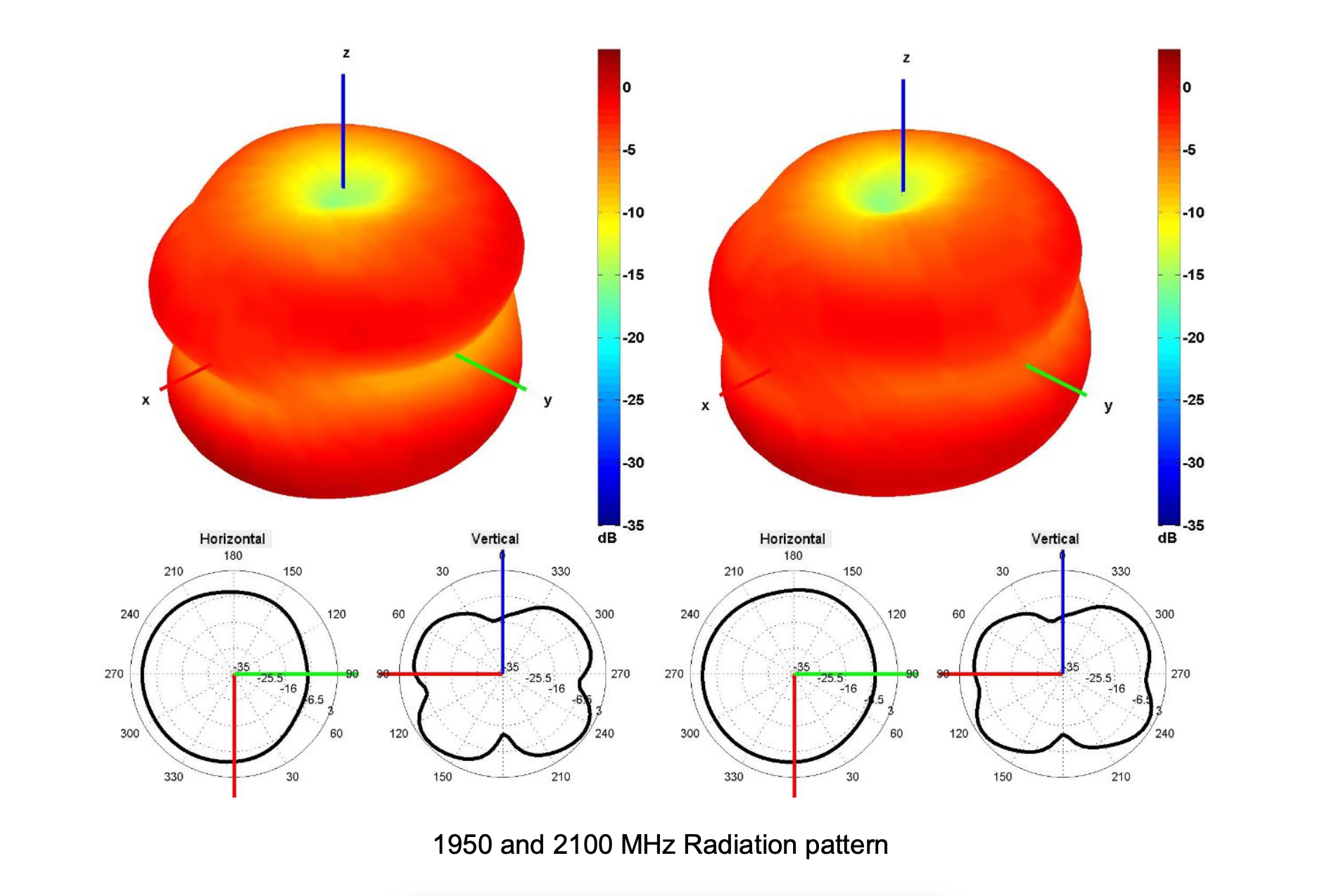

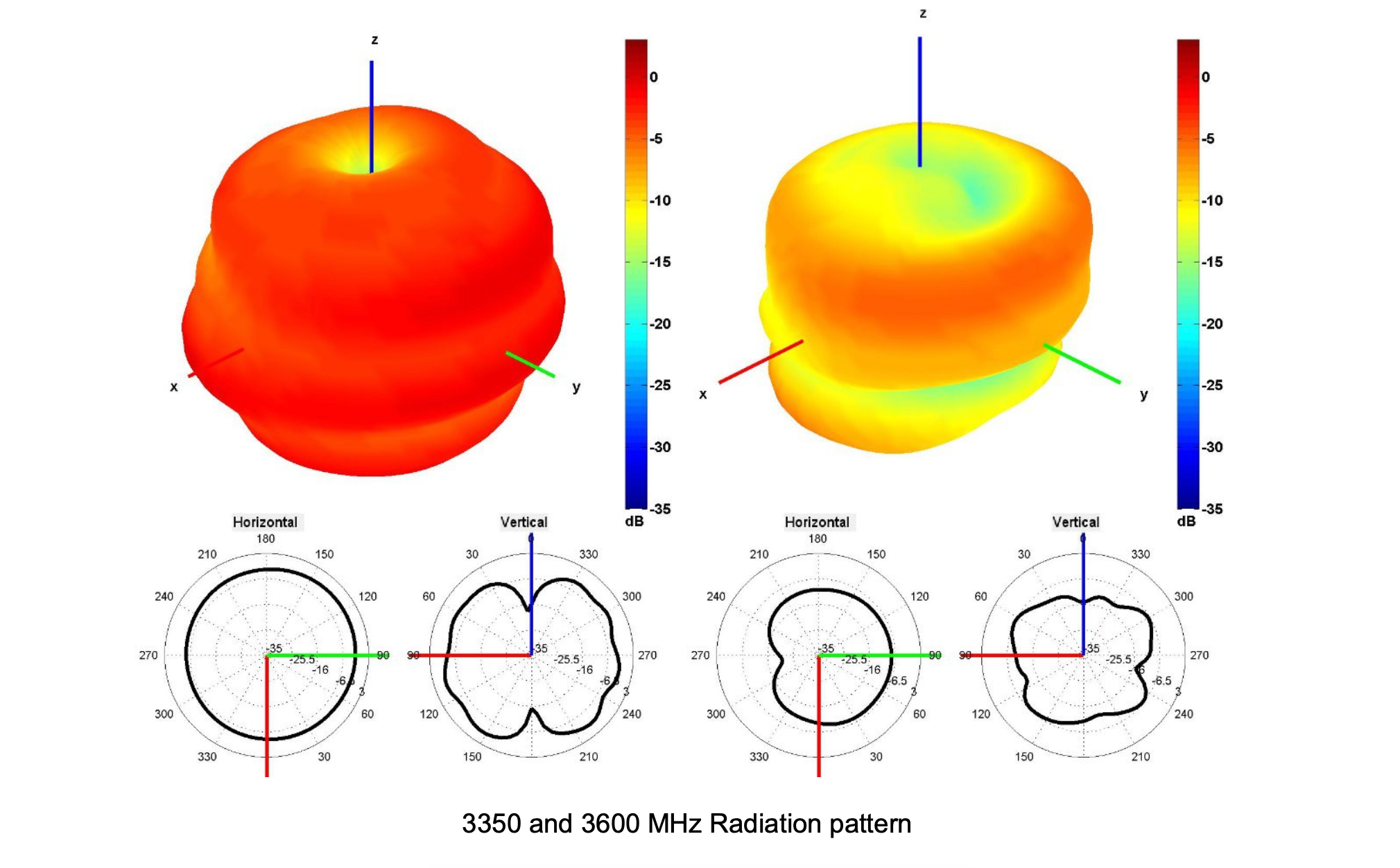

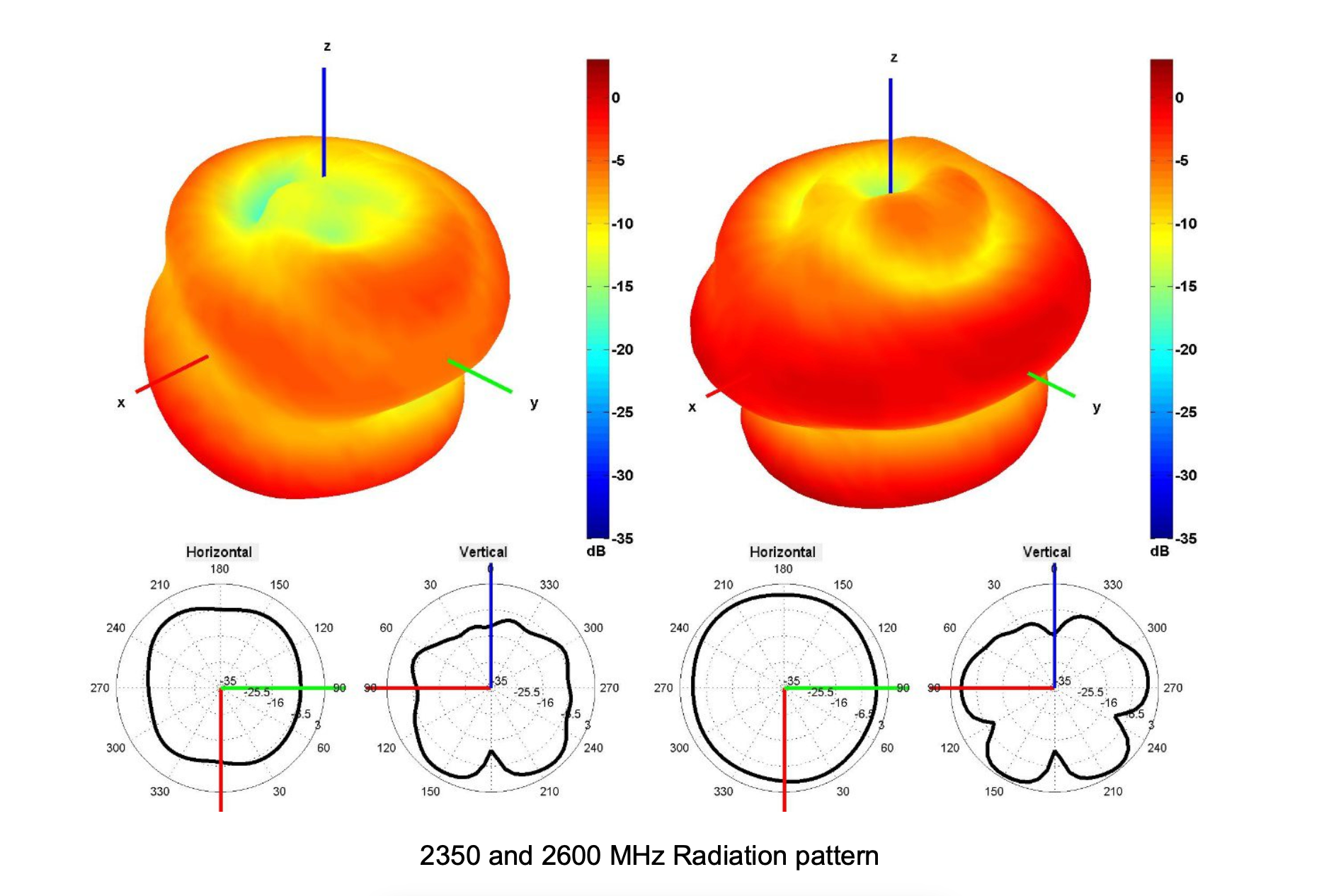

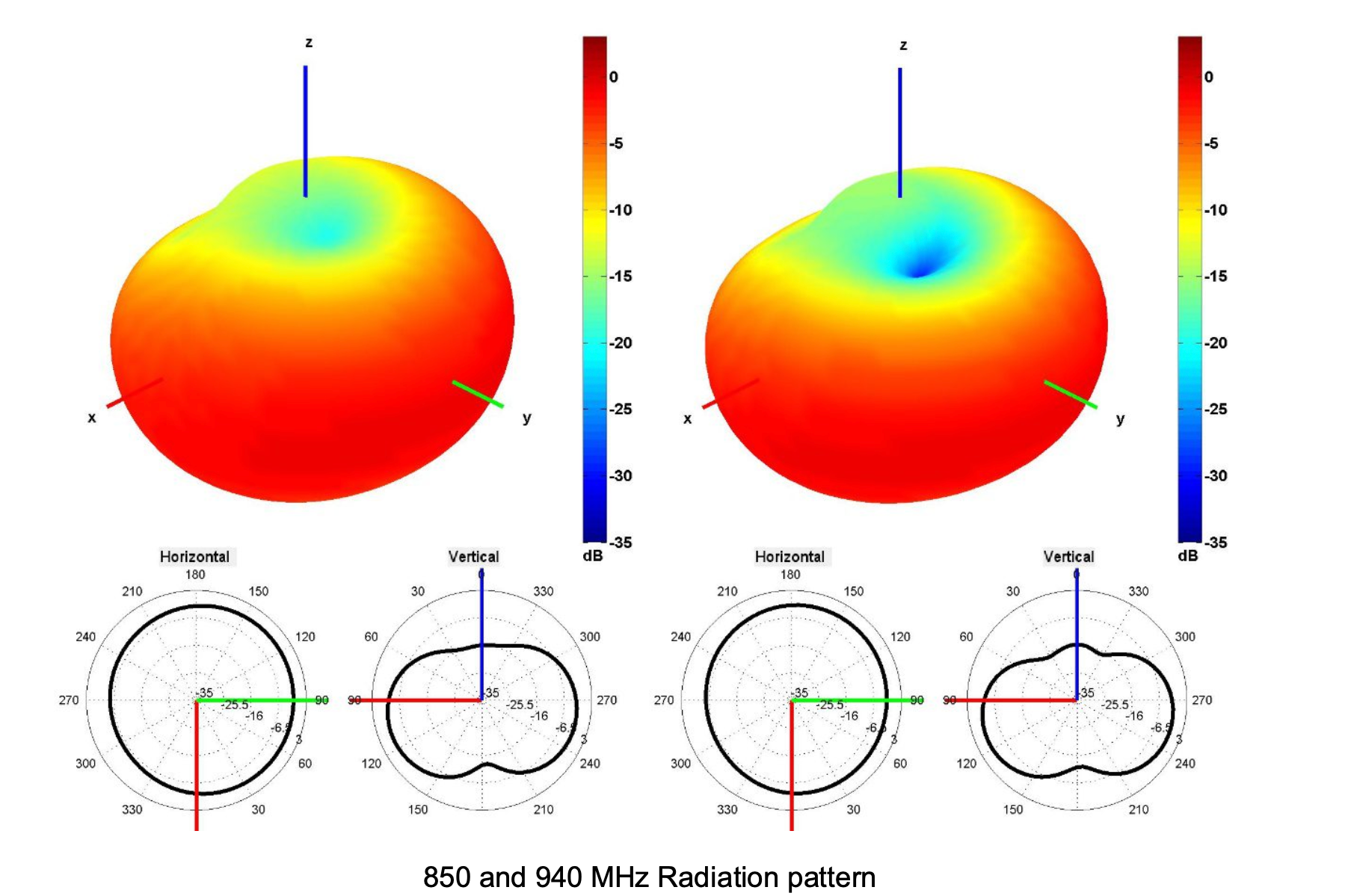

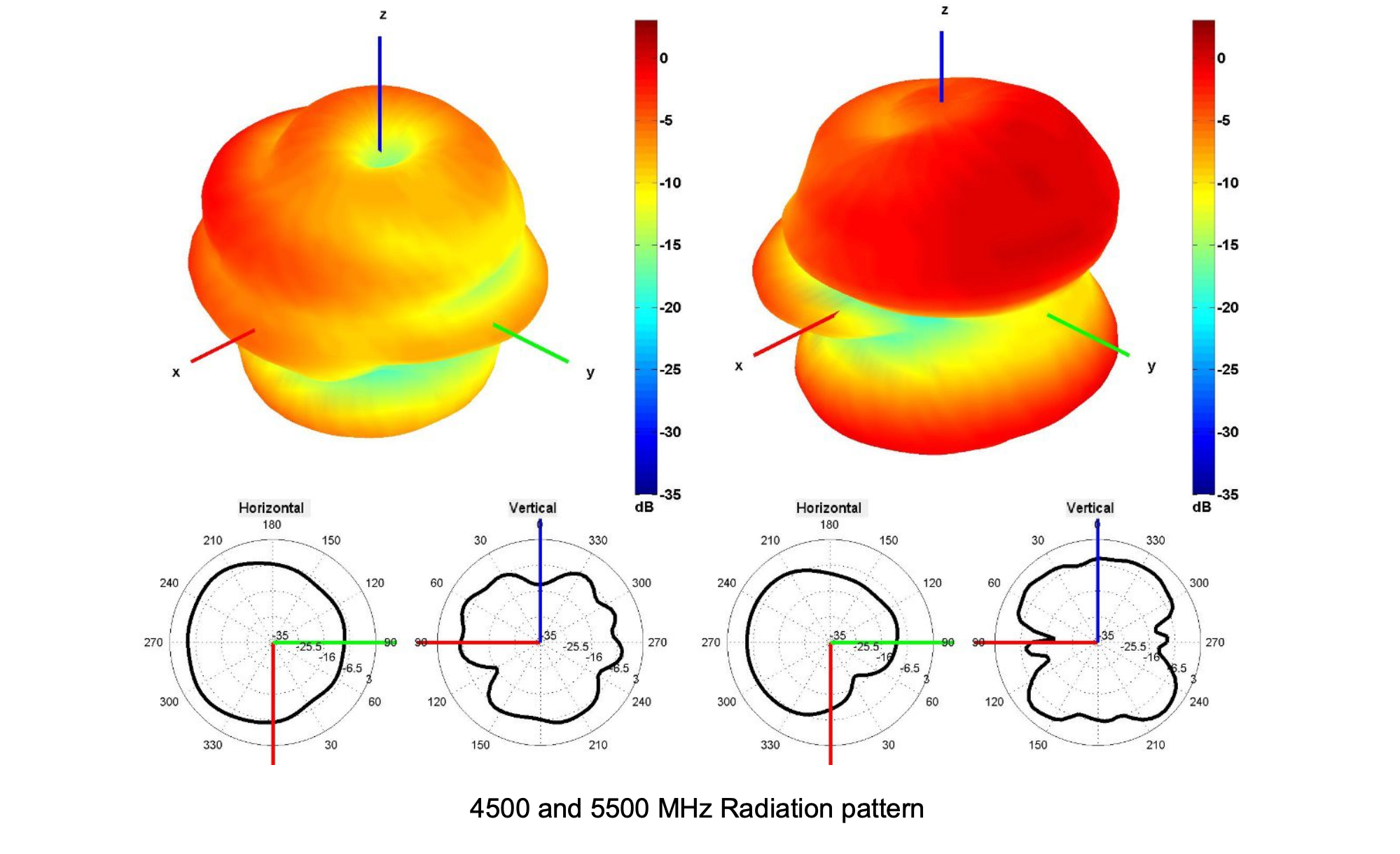

- Omni-Directional Performance: Provides a uniform 360-degree radiation pattern, simplifying installation as it captures signals from any direction without needing to be aimed.
- High Efficiency: Engineered for high efficiency, reaching up to 43.3%, ensuring a strong and stable link for data transmission.

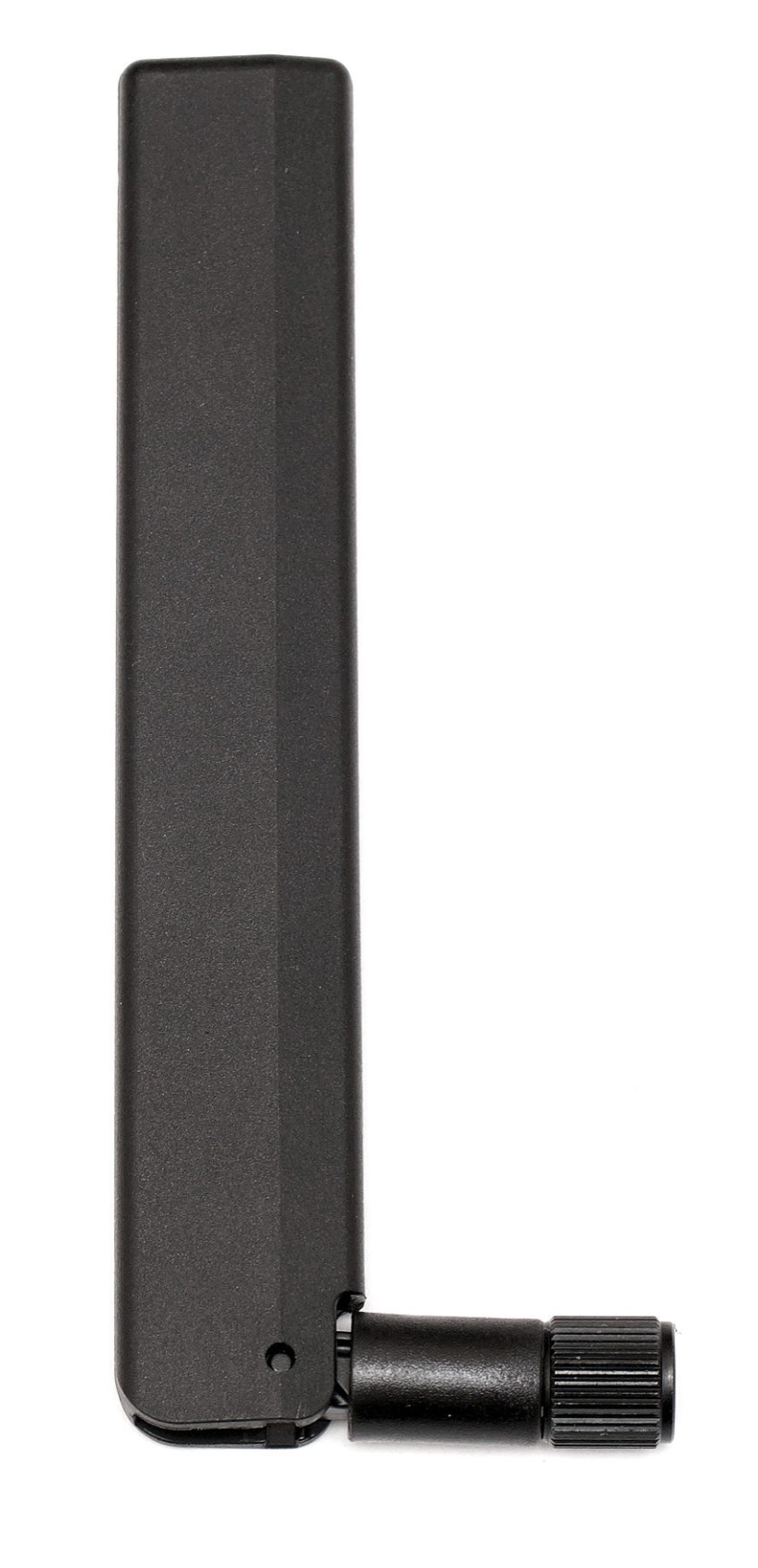

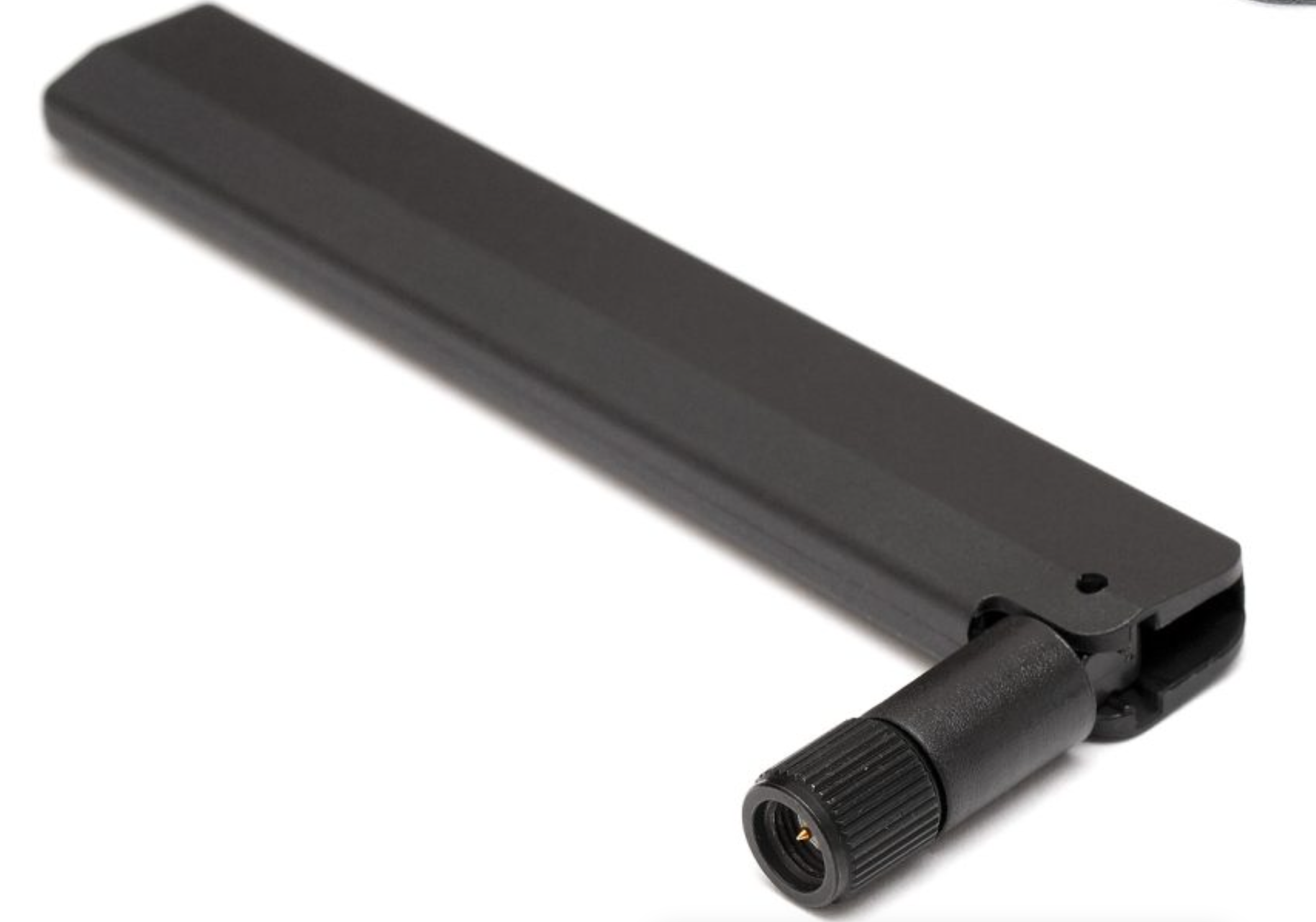

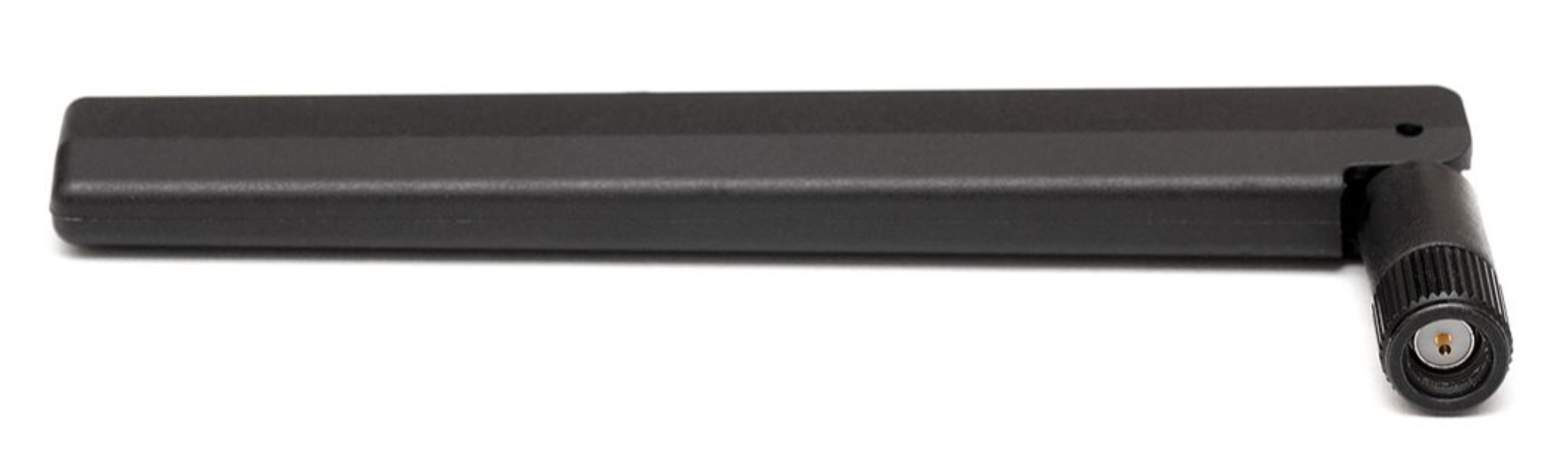

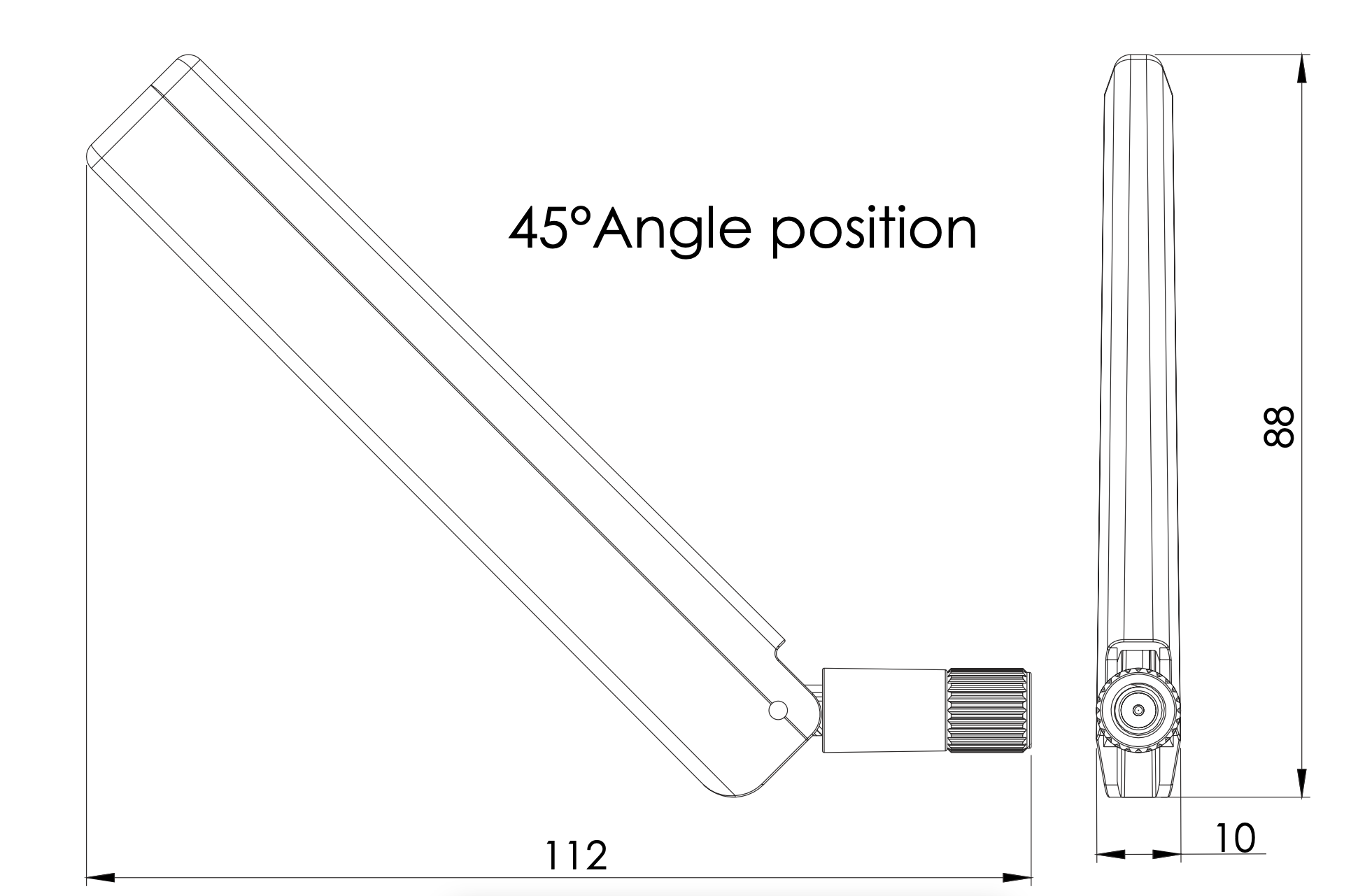

- Flexible Hinged Connector: The integrated hinged mechanism allows the antenna to be positioned straight, at a right angle, or at any point in between for optimal signal reception and to fit in tight spaces.
- Durable Construction: The radome is made from a black PC/ABS material that is UV stable, and the antenna is rated to operate in temperatures from -40°C to +85°C.
Technical Specifications
| Specification | Value |
| Frequency Bands | 617-960 MHz, 1427-2690 MHz, 3300-5000 MHz, 5150-5925 MHz |
| Supported Technologies | 5G, 4G, 3G, 2G |

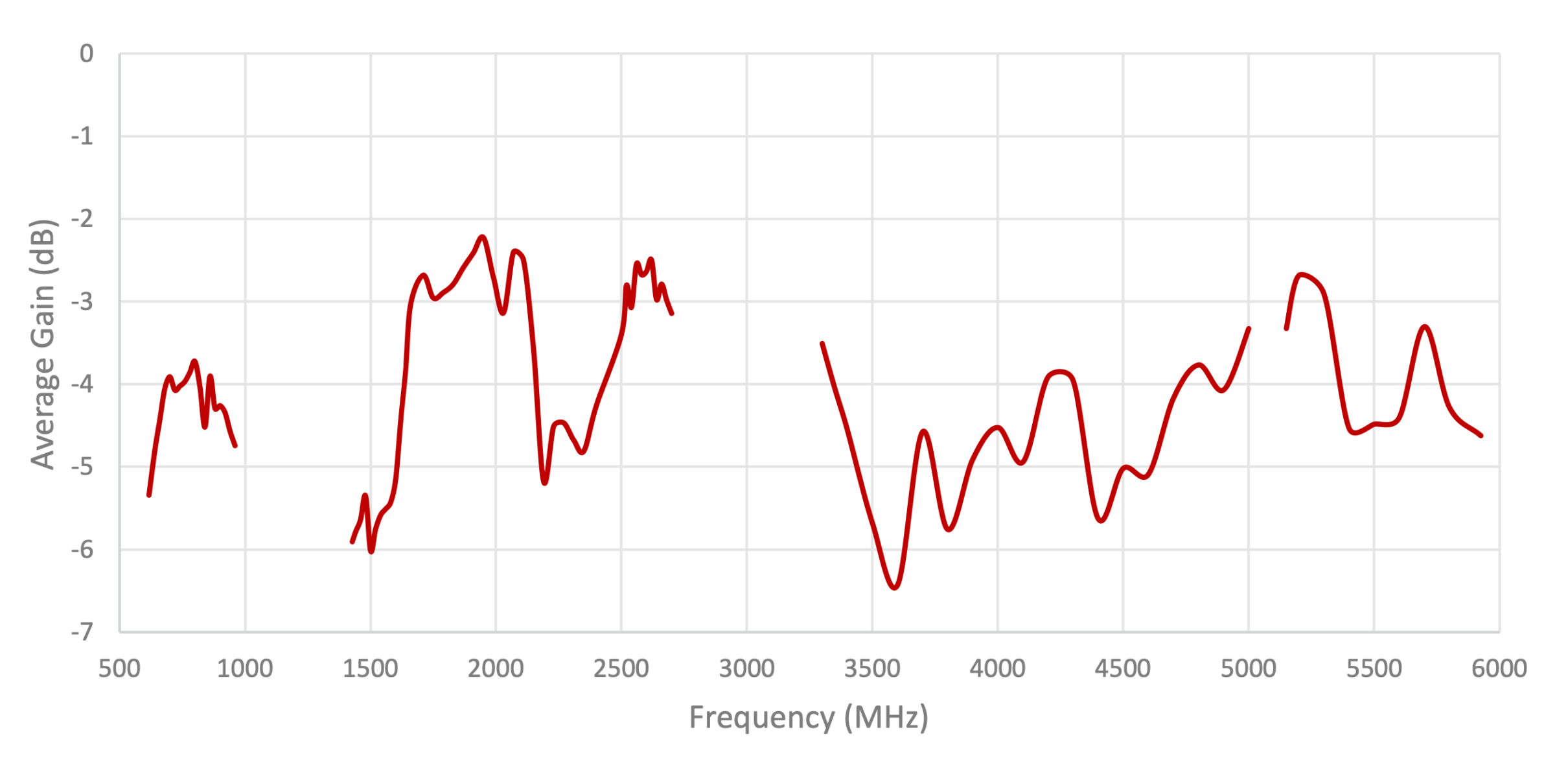

| Peak Gain | Up to ~0.3 dBi |

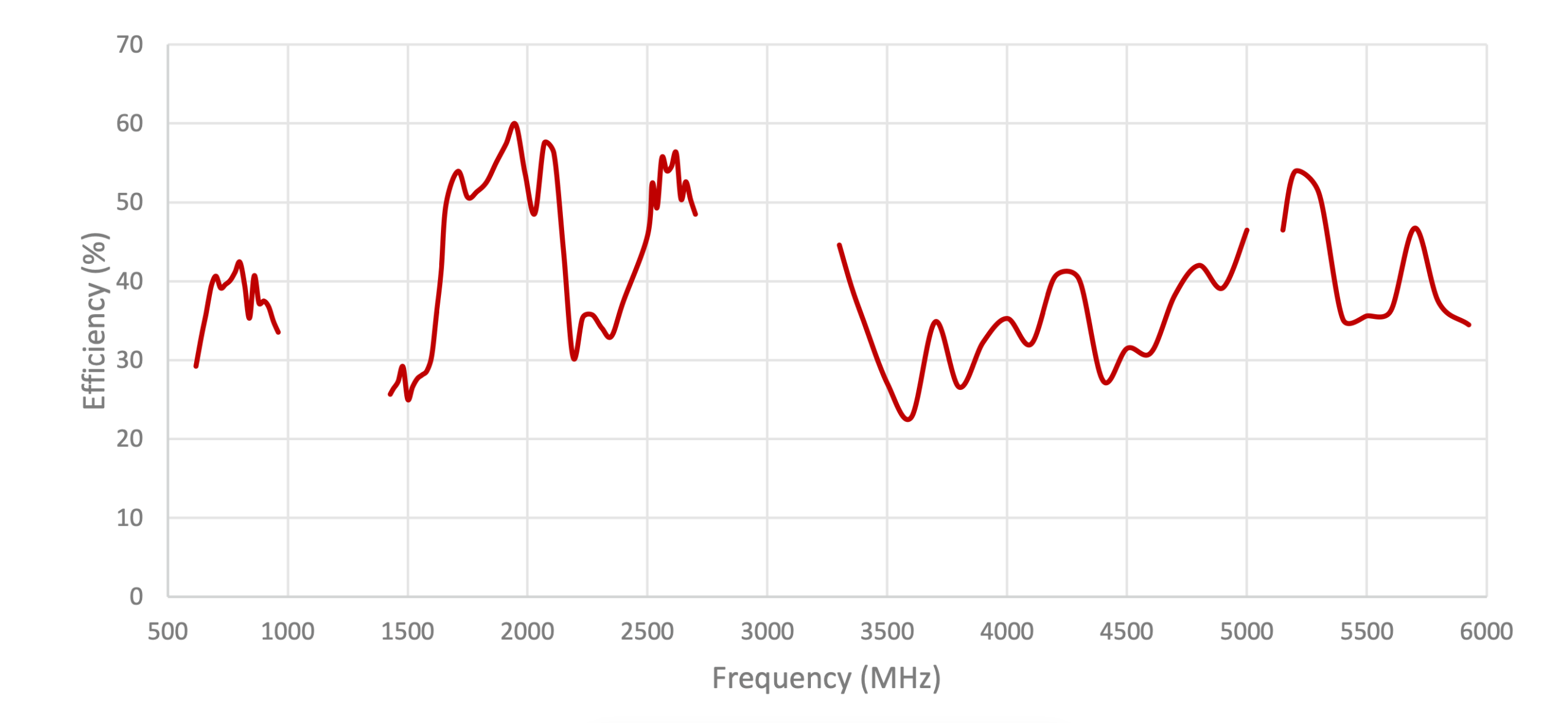

| Efficiency | Up to ~43.3% |

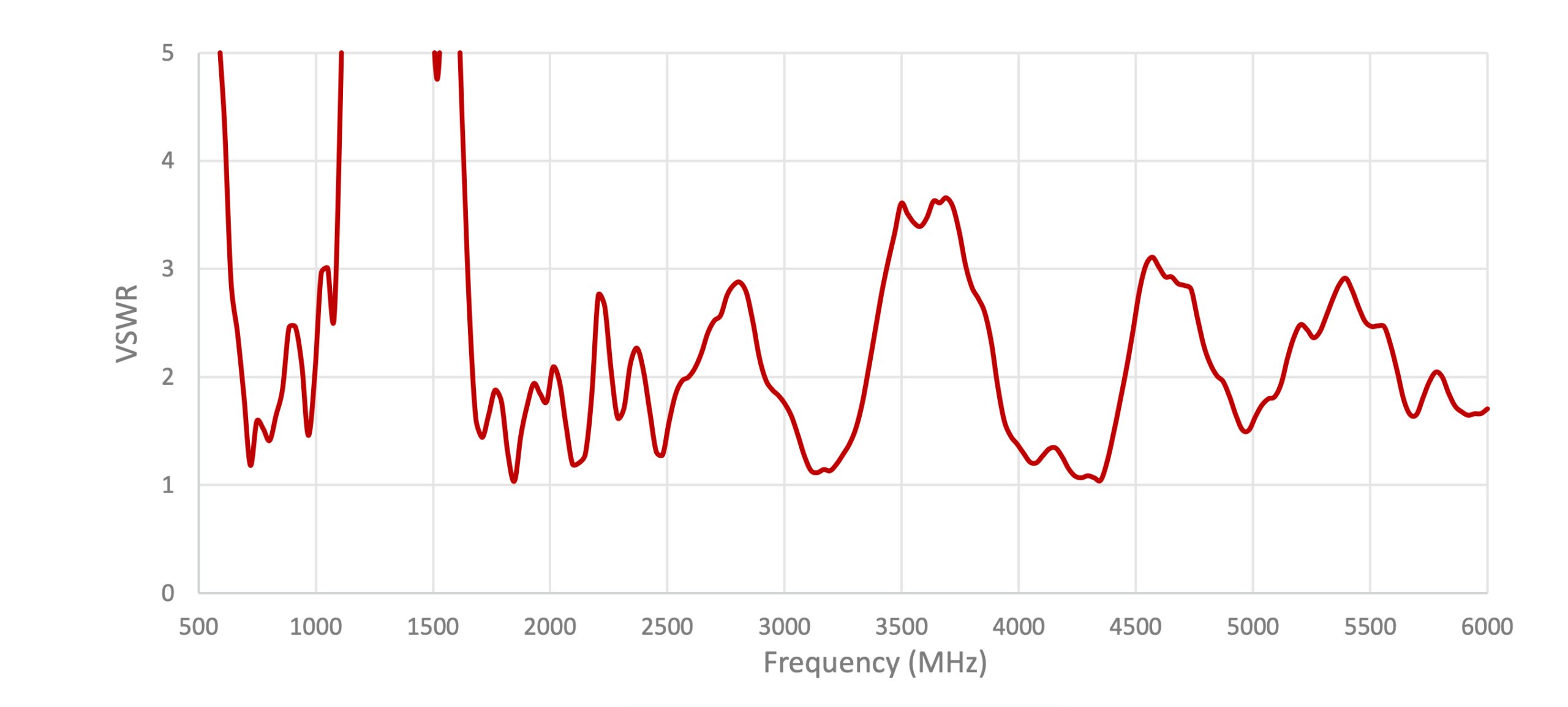

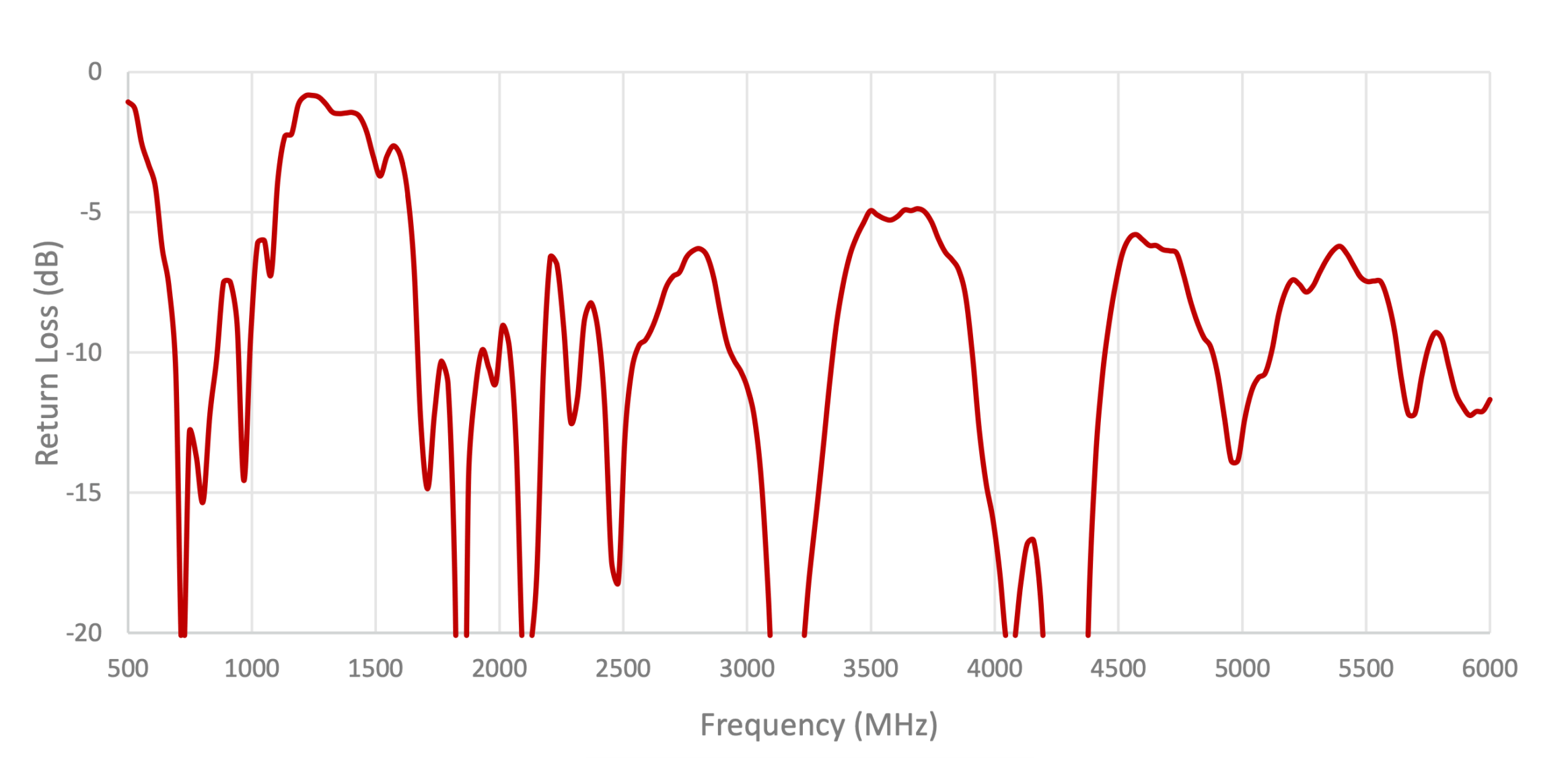

| VSWR | ≤ ~2.6:1 |
| Polarization | Linear |
| Impedance | 50 Ohm |
| Max Input Power | 25 Watts |

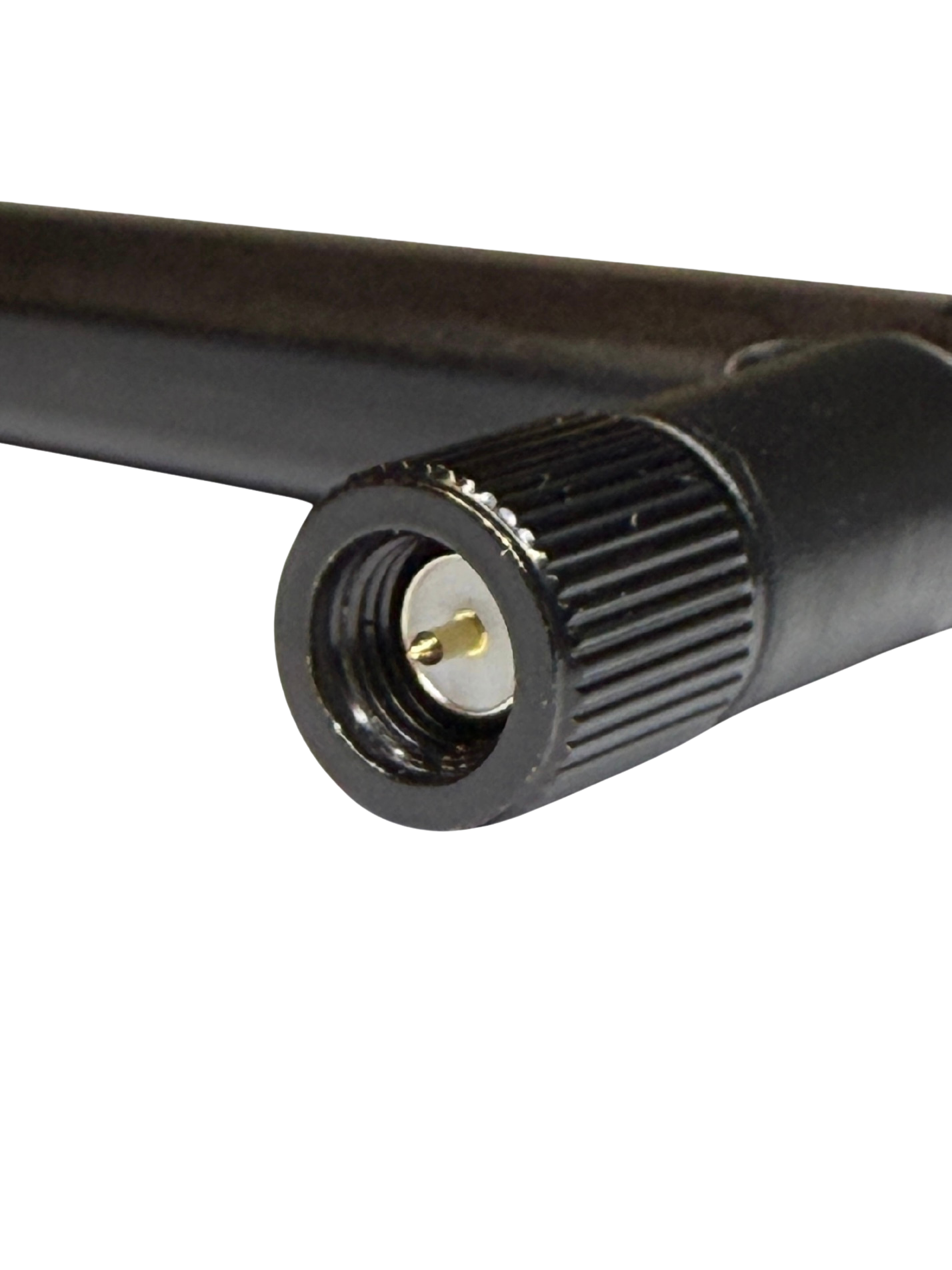

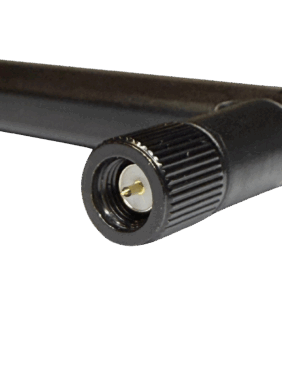

| Connector | SMA-Male |
| Mounting Type | Direct Connector Mount |
| Radome Material | PC/ABS (UV Stable) |
| Operating Temperature | -40°C to +85°C |

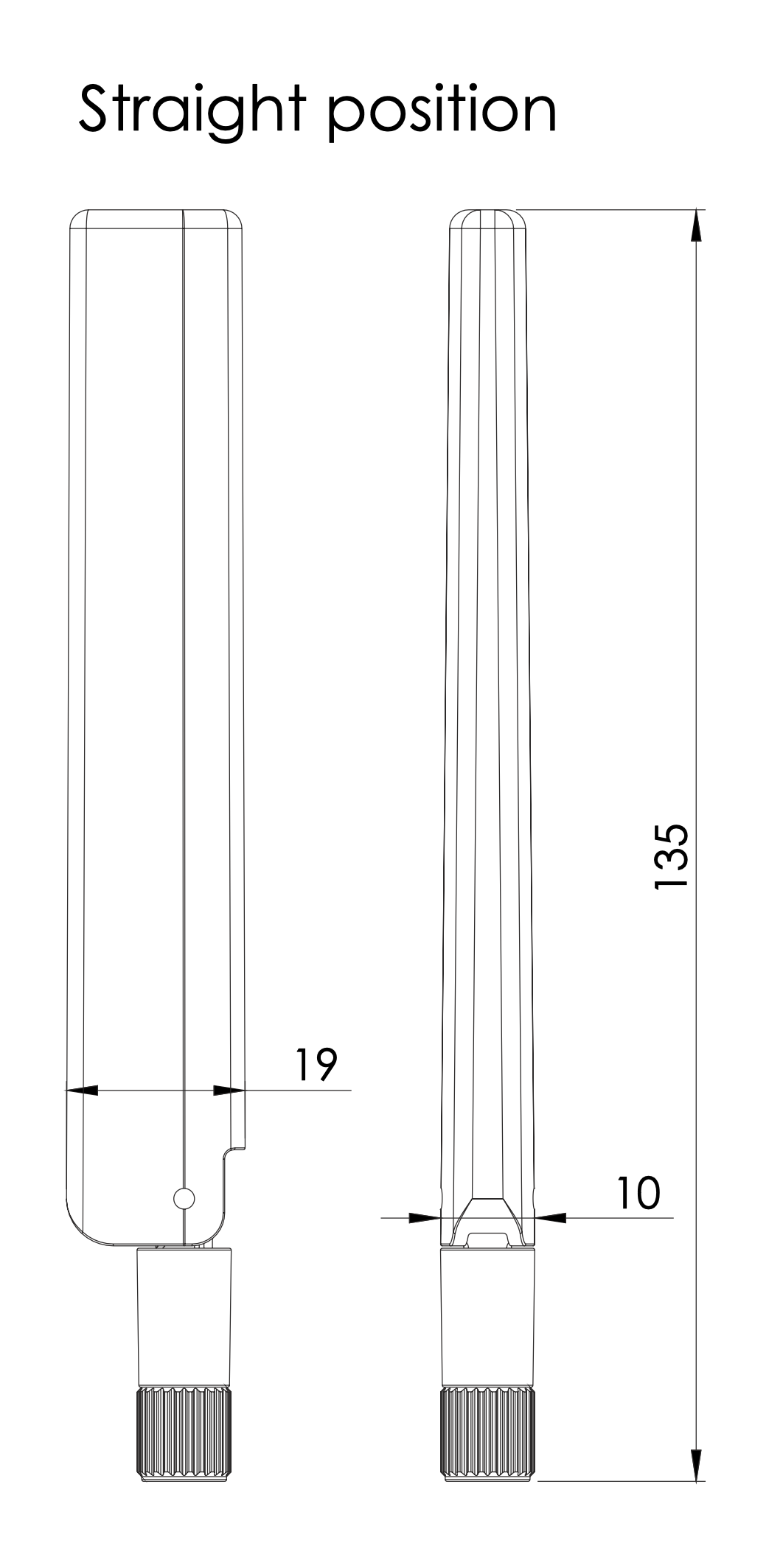

| Dimensions (Straight) | 135 mm x 19 mm x 10 mm |

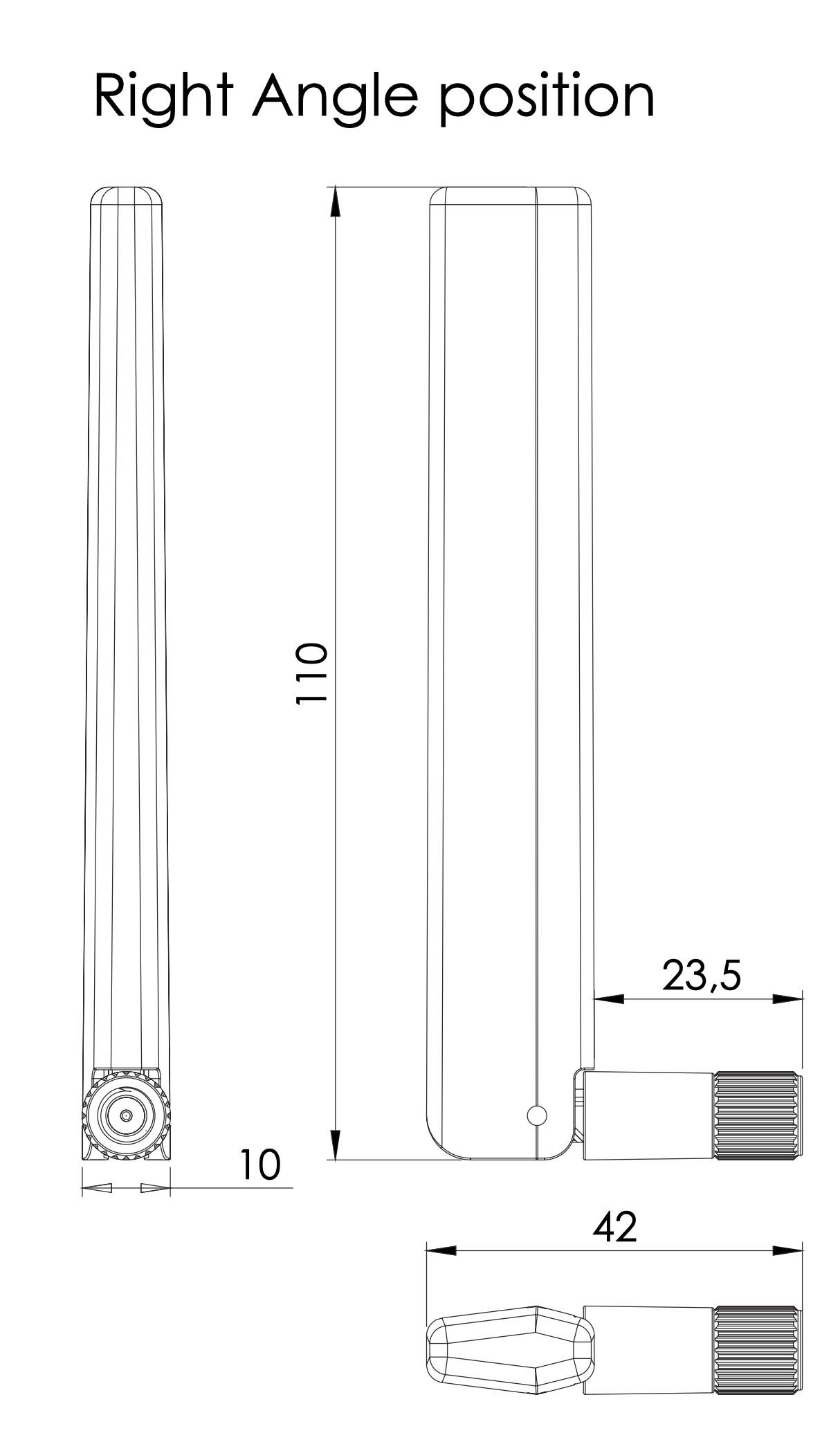

| Dimensions (Right Angle) | 110 mm (H) x 42 mm (L) |
