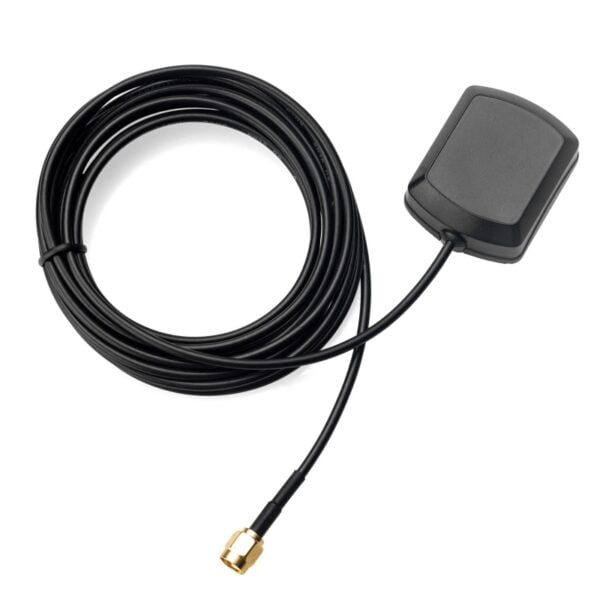

External Active GPS Antenna – 29dB – SMA Plug
This 28dB gain outdoor GPS antenna has magnetic mount, 3 meter cable with SMA connector.
128 in stock
This GNSS (GPS, Galileo, Glonass) antenna has magnetic radome so it will stick to any steel structure like a roof of a car. It draws between 5-15mA and works in 2.2-5V DC range. You will need a sort of SMA to u.FL adapter cable to use it with u.FL modules/shields.
- 50-ohm impedance
- 3-meter cable length with standard SMA connector
- Polarization: RHCP
- Radome Material: ABS
- LNA Gain: 29±1 dB
- Noise Figure: 1.5dB
- Gain(Zenith): 3dB
- V.S.W.R: <1.5
Questions and answers of the customers
Q Does this require jumping the "active antenna enabling" pads on the Raspberry Pi Cellular IoT HAT... answer nowAsked by 7 October 2019 3:27 PMonAnswered by the admin
Yes, this is an active antenna. So the Raspberry Pi Cellular IoT HAT – LTE-M & NB-IoT & eGPRS Hat active antenna pads need to be soldered.
