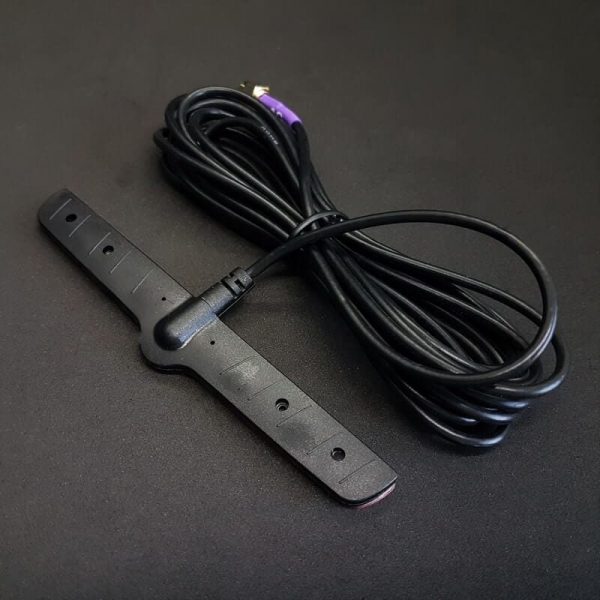

LTE Antenna – 3 Meter SMA – 2.5dBi
This antenna with adhesive tape has 3 meter cable. It’s IP67 compliant, thus a good fit for outdoor LTE applications.
16 in stock
It has 50-ohm impedance and a standard SMA connector and most of our 4G modems have u.FL type connector. If you need to connect it to a u.FL one, you should bridge between connectors via these SMA to u.FL adapter cables.
- Frequency Range: 824-960/1710-2655 MHz
- Polarization: Linear
- SMA Plug
- 3 meter cable length
- Adhesive tape
- Ingress Protection Level: IP67
Questions and answers of the customers
Q Does this antenna provide better signal than the other pulse antennas? answer nowAsked by 16 March 2020 11:46 AMonAnswered by the admin
This antenna is used for outdoor LTE applications.
There is no difference, only the bands they support are different.
Q I have the EC25-A and this antenna. which port do I use? It says to have 2 and I have ordered ano... answer nowAsked by 25 February 2020 3:32 AMonAnswered by the admin
This antenna is not compatible with EC25.
You can use this antenna: https://sixfab.com/product/lte-main-diversity-gnss-triple-port-u-fl-antenna-100mm/
Q Hi so I notice that there are 2 wires coming to the antenna that came with the SixFab shield that... answer nowAsked by 28 June 2019 9:33 PMonAnswered by the admin Hello, If you are talking about the Quectel EC25, Then minimum one antenna is required. But for efficient connection 2 antennas are recommended.
Q 1. What is the adapter type that I should use to connect this antenna to Quectel EC25 4G/LTE modu... answer nowAsked by 10 June 2019 2:59 AMonAnswered by the admin
- The ports of the antenna are uFL port.
- The operating temperature of the mentioned antenna is -40℃~+85℃.
