LTE Main & Diversity & GNSS Triple Port u.FL Antenna – 100mm


Main and Diversity LTE antennas combined with a GNSS antenna in a single formed  antenna. Direct fit for Quectel EC25 Mini PCle 4G/LTE Module.

56 in stock (can be backordered)

SKU: S78 Category: Tags: , , ,

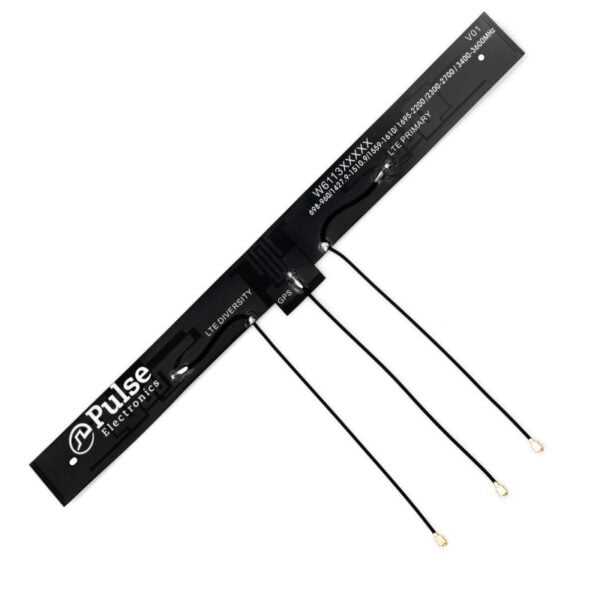

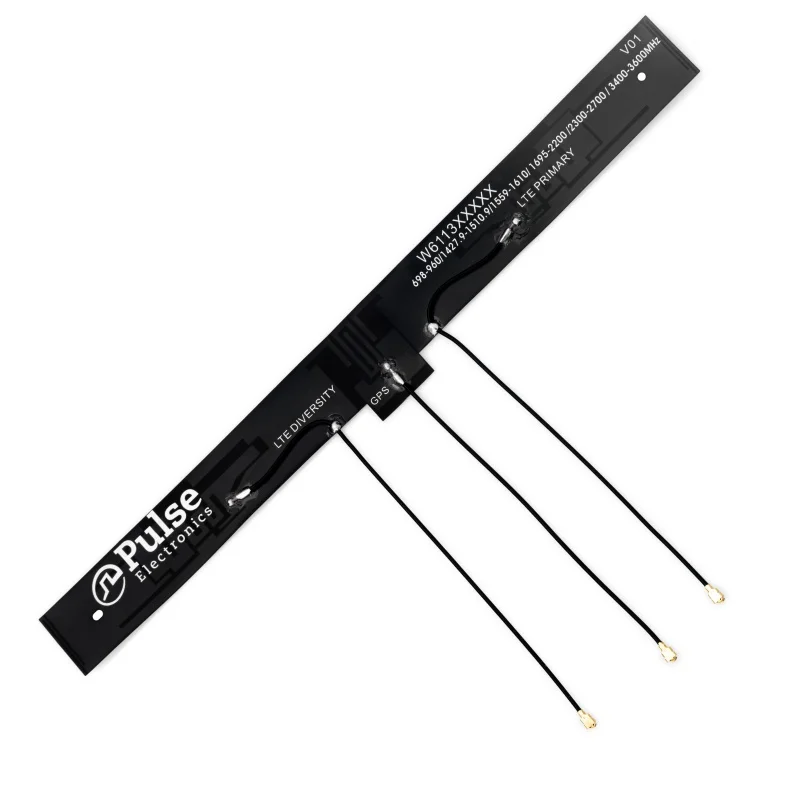

That has three antennas at the same time in a single form. One of them is GNSS (GPS, Glonass), the other two are full band LTE, both primary and diversity. It’s a kind of flex PCB (FPC) and can be folded for tight spaces. Also has adhesive tape on the back for fixing it on boxes/enclosures.

It will work perfectly with Quectel EC25 Modules.

  • 50-ohm impedance
  • 100mm cable length
  • 2G/3G/4G LTE coverage
  • Supported frequency range: 698-960/1427.9-1510.9/1559-1610/1695-2200/2300-2700/3400-3600 MHz
  • Global LTE bands: B1-B23, B25-B29, B33-B42 ( North America, Europe and Asia included Japan)
  • Peak gains are between 3.4dBi-4.2dBi at the LTE bands (1695 -3600 MHz) and 0.8dBi for the GNSS (1570-1610MHz)
  • u.FL connectors
  • Adhesive tape



There are no reviews yet.

Be the first to review “LTE Main & Diversity & GNSS Triple Port u.FL Antenna – 100mm”

Your email address will not be published. Required fields are marked *

Questions and answers of the customers

  1. 0 votes
    Answered by the admin

    Its will be in stock within a week.

  2. 0 votes
    Answered by the admin

    They are in stock now.

  3. 0 votes
    Answered by the admin Hello, It is 2.2cm
  4. 0 votes
    Q What are the physical dimensions of this product? answer now
    Asked by Bob on 11 June 2019 9:04 PM
    Answered by the admin

    Please check the image below.
