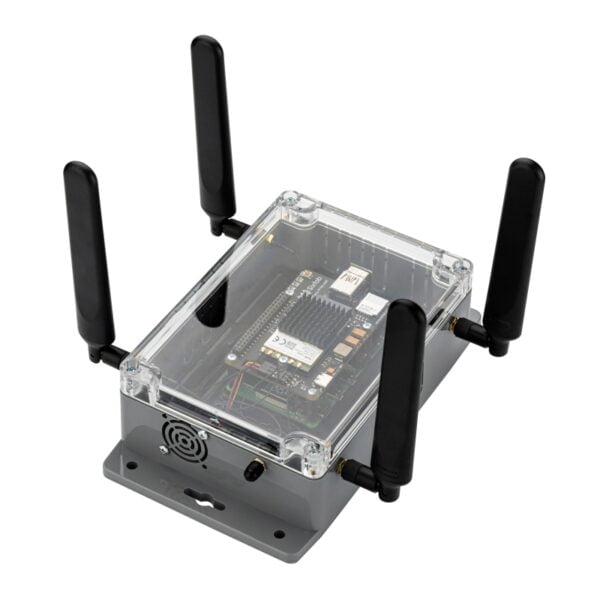

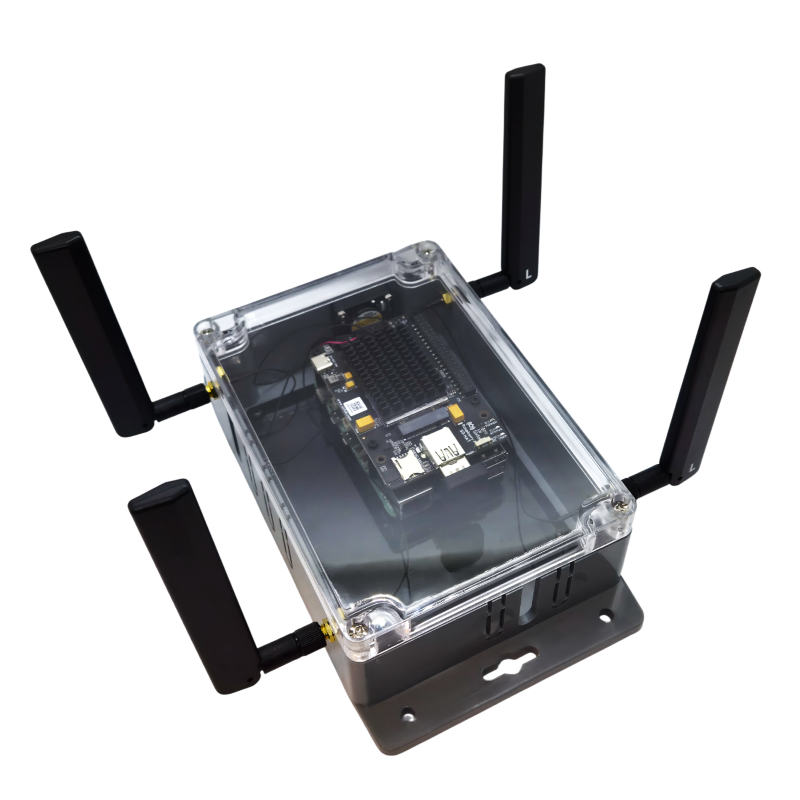

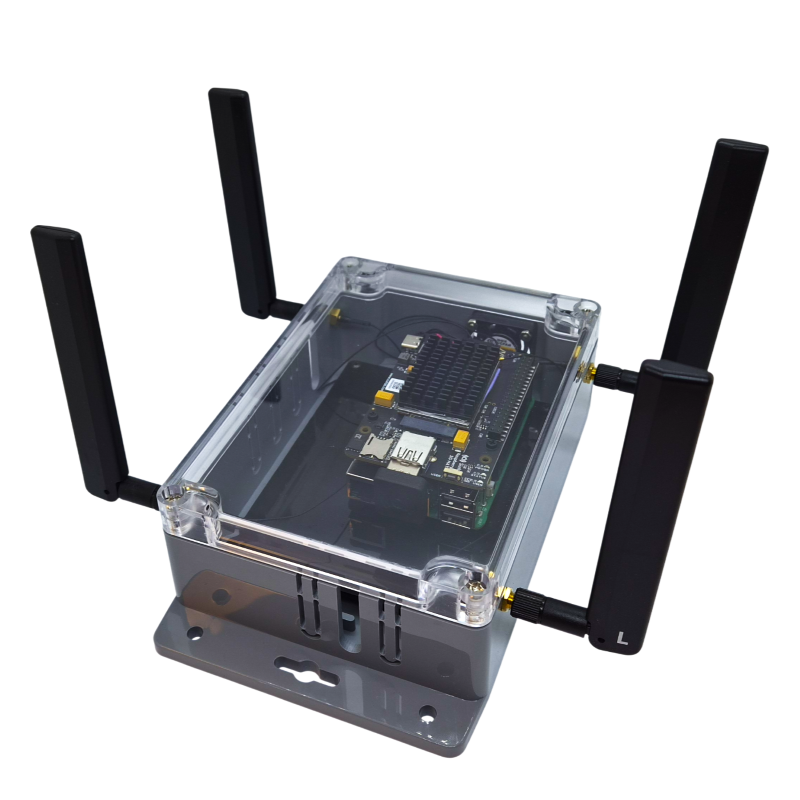

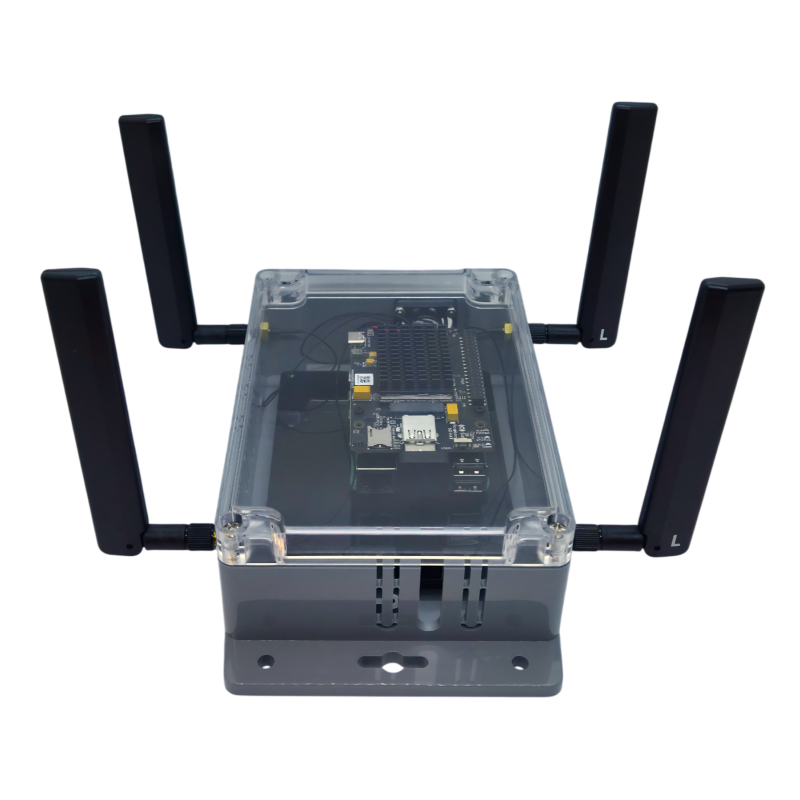

Raspberry Pi 5G Development Kit

PRE-ORDER

5G Development Kit is for M.2 package 5G modems designed to work with the Raspberry Pi. It allows you to develop, trial, and test your ideas on this platform in preparation for the commercialization of 5G devices and networks. Data throughput up to 5.0 Gbps DL and 1.0 Gbps UL is possible with that kit.

New pre-orders’ delivery starts by end of Oct 2022.

$175.00$595.00

Clear

Description

5G is the next-generation wireless technology, and we’ve got you covered. This kit includes everything you need to take the first step into the future of communication. The worldwide 5G Sub-6GHz coverage gets you going with high throughput. The kit has everything you need for a low-cost way to experiment with the advancement in communication. It supports M.2 modem cards that are available worldwide. With an enclosure, RF cables, and antennas, the kit is ready to use, providing developers with a great opportunity to explore 5G soon!

FAQ Complete Documentation Ask a Question

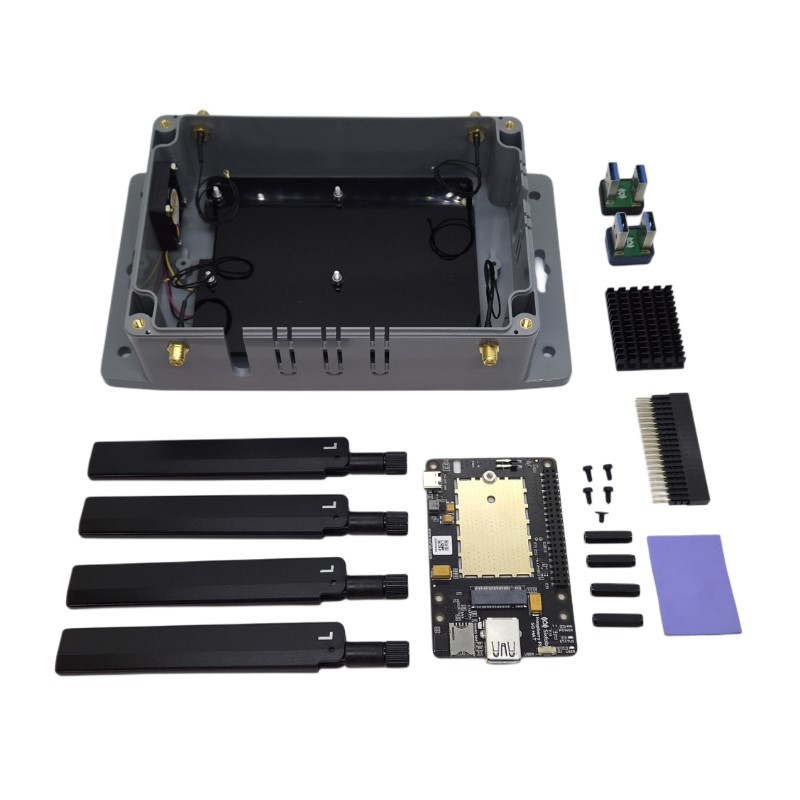

Kit Items

  • Indoor plastic project enclosure
  • Mounting Bracket inside Enclosure for Raspberry Pi and Peripheral electronics

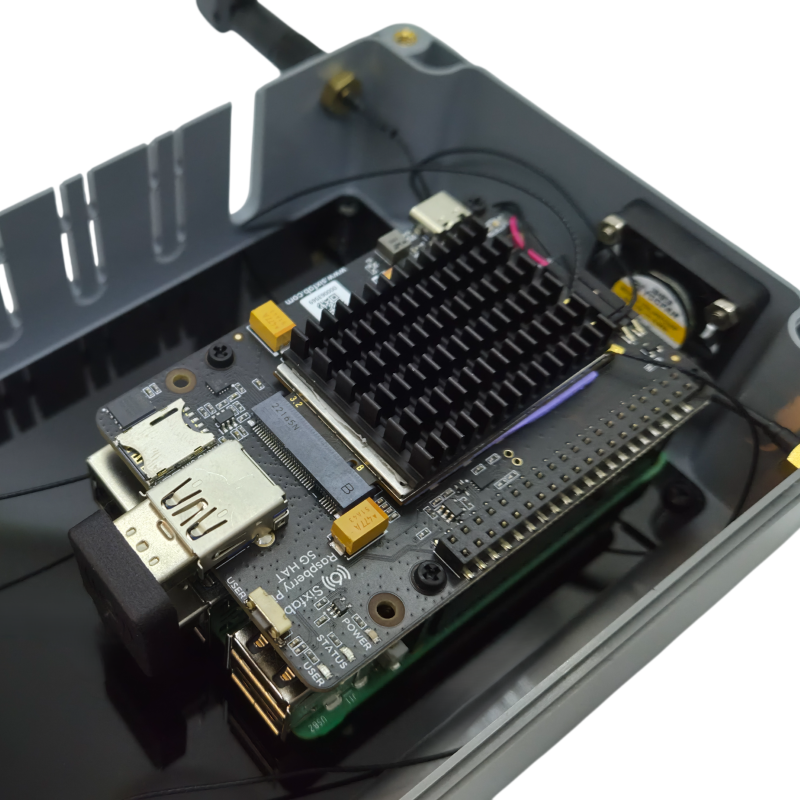

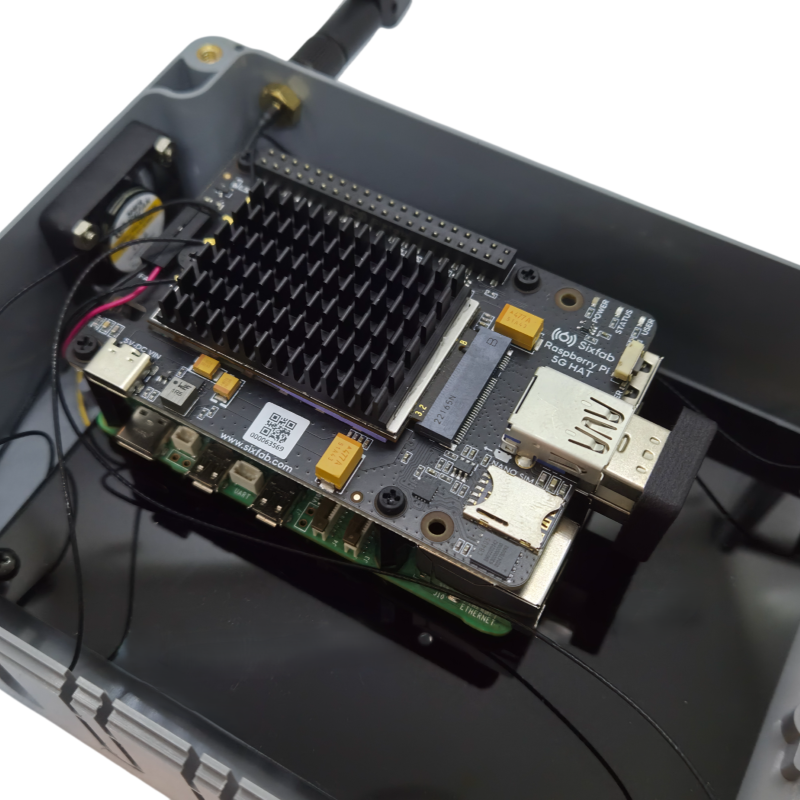

  • Raspberry Pi 5G HAT
  • M.2 5G Modem (Optional) – Quectel RM502Q-AE
  • 5x LTE/5G High-Performance Antenna – SMA Connector
  • 5x Adapter Cable for Modem to SMA Antenna Connection
  • USB 3.0 Bridge for Raspberry Pi to Modem Carrier HAT
  • Cooling Fan
  • Heat Sink for 5G module and Raspberry Pi
  • Standoffs and screws
  • 5V DC – 3A Type-C Power Supply with Universal Plug – Interchangeable

Sixfab 5G Development Kit is an easy way to get started with 5G technology for IoT/eMBB (enhanced Mobile Broadband) applications. It comes with everything you need to connect and test your idea using a real-world 5G infrastructure. The modem carrier HAT can work as a standalone 5G dongle. That makes the 5G kit compatible via USB cable with NVIDIA Jetson Nano Developer Kit, Beaglebone, Asus Thinkerboard, NXP i.MX 8 architectures and also personal computers. Recent drivers support Windows 10 and Linux, please check the modem datasheets for the details.

The 5G New Radio (NR) or also known as 5G Sub-6GHz as well as 5G mmWave adopting the 3GPP Rel-15 LTE technology, compatible modems support both standalone (SA) and non-standalone (NSA) modes. That enables you to develop next-generation wireless applications and proves your concepts of 5G networks. The kit is a comprehensive 5G toolset to develop, optimize and test your MTC/M2M projects. The 5G network is optimized for high-performance and bandwidth-intensive products like routers and IoT gateways, indoor and outdoor CPE, high-quality video streaming, real-time sensor data broadcasting, critical implementations with low-latency connection, high-speed mobile 5G hotspot, etc.

Technical Documentation

Quectel RM502Q-AE 5G Specification V1.2
Quectel RG50xQ-RM5xxQ Series AT Commands Manual V1.2
Quectel RG50xQ-RM5xxQ Series 5G Network Searching Scheme Introduction V1.0
Quectel RG50xQ-RM5xxQ Series 5G Network Status Judgement Introduction V1.0
Quectel RM50xQ Series Reference Design V1.3
Quectel RM50xQ Series Hardware Design V1.2
Quectel RG50xQ-RM5xxQ Series FTM Application Note V1.0
Quectel RG50xQ-RM5xxQ Series GNSS Application Note V1.1
Quectel RG50xQ RM5xxQ Series DFOTA Application Note V1.0
Quectel RG50xQ-RM5xxQ Series Software Thermal Management Guide V1.0
Quectel RG50xQ-RM5xxQ Series Secure Boot Application Note V1.0
Quectel RM50xQ Series Thermal Design Guide V1.0
Quectel RM502Q-AE 3D Dimensions V1.1

Driver

Quectel LTE&5G Windows USB Driver
Quectel Linux USB Serial Option Driver
Quectel Linux&Android QMI WWAN Driver V1.2.1
Quectel Linux&Android GobiNet Driver V1.6.3
Quectel QConnectManager Linux V1.6.2
Quectel LTE Windows USB Driver For MBIM


Tools

Quectel Qflash
Quectel Qnavigator
Quectel LTE&LTE-A QFlash Linux&Android
Quectel LTE&5G QFirehose Linux&Android
