SKU: B90

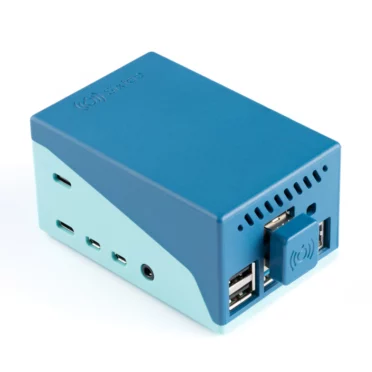

Sixfab Jumpstart 5G


  • Sixfab Jumpstart 5G is an Edge IoT computer based on the Raspberry Pi 4 – 8 GB
  • Integrated Quectel RM502Q-AE 5G Sub-6Ghz
  • Patent-pending Sixfab designed internal antenna for Sub-6GHz frequency bands
  • Specially designed ABS material enclosure
  • Sixfab USB 3.0 bridge connector


Sixfab Jumpstart 5G

30 in stock


All in One

Including everything
you need to jump 5G

High Speed, Low Latency

High-speed, low-latency
communications across your
5G network

Simple Setup

Easy to follow
tutorials to connect

Key Features & Benefits

Worldwide 5G coverage

NSA and SA modes supported, Sub-6 GHz only

Enhanced internal antenna performance for 5G frequencies

All inclusive high speed 5G/LTE indoor CPE/gateway

3x LEDs, help as indicators

High Speed USB 3.0 interface between modem and

Raspberry Рі 4

Supports TCP/UDP/FTP/HTTP/HTTPS/PING/SMS networks protocols

Low latency with 5G cellular connectivity

Product Specifications

Best For5G network test and application
RegionsGlobal (except China)
Max. Data Speeds5G SA Sub-6: 4.2 Gbps (DL)  / 450 Mbps (UL)
5G NSA Sub-6: 5.0 Gbps (DL) / 600-650 Mbps (UL)

*Due to Raspberry Pi limitations, max. data speed 400 Mbps (DL) / 400 Mbps (UL)
Electrical2x 5.1V DC 3.0A
Operating Temp.-10°C to 50°C
Dimensions104.36 x 63.4 x 51.5 mm
ApprovalsFCC, IC, CE, UKCA, CB*, PTCRB*, GCF*

*Currently in progress


Package Contents

Sixfab Jumpstart 5G

  • Sixfab 5G Modem Carrier HAT
  • Sixfab 5G 4x MIMO Antenna as HAT
  • Quectel RM502Q-AE 5G Sub-6GHz Module
  • Sixfab USB 3.0 Bridge Connector
  • Raspberry Pi 4 Model B – 8 GB RAM
  • ABS Plastic Snap-in Enclosure
  • Custom Heatsinks with a Cooling Fan
  • Sandisk 32GB Ultra microSDHC UHS-I Memory Card

2x Sixfab 5.1V 3.0A DC Power Adapters with Universal Plugs

SIM Remover Tool
