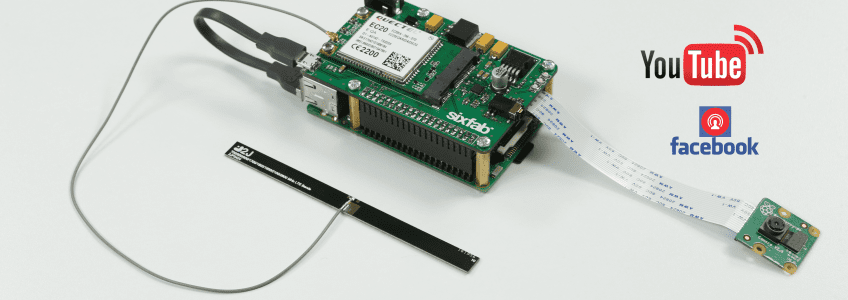

Sixfab 3G, 4G/LTE Base Shield with appropriate module provides very high speed internet connection. Use Raspberry Pi camera and you can make live stream to Youtube and Facebook. You can use the following transactions for work.
- First follow PPP installer or QMI interface to connect your Raspberry Pi to the internet.
- For live stream you can use FFMpeg.
- Install h264 Support
- cd /usr/src
- git clone git://git.videolan.org/x264
- cd x264
- ./configure –host=arm-unknown-linux-gnueabi –enable-static –disable-opencl
- make
- sudo make install
- Install FFMpeg
- cd /usr/src
- git clone https://github.com/FFmpeg/FFmpeg.git
- cd FFmpeg
- sudo ./configure –arch=armel –target-os=linux –enable-gpl –enable-libx264 –enable-nonfree
- make if you have a Model B+ and later version, you can use make -j4 instead of just make to take advantage of all four cores!
- sudo make install
- Install h264 Support
- Signup for a Facebook or Youtube account and get [SERVER URL]/[STREAM NAME]
- At last, run this command to start live
raspivid -o - -t 0 -vf -hf -fps 30 -b 6000000 | ffmpeg -re -ar 44100 -ac 2 -acodec pcm_s16le -f s16le -ac 2 -i /dev/zero-f h264 -i - -vcodec copy -acodec aac -ab 128k -g 50 -strict experimental -f flv [SERVER URL]/[STREAM NAME]
Hello,
My name i Alem .
I need this devices .
How can I buy this?
Thanks !
https://sixfab.com/product/raspberry-pi-3g-4glte-base-shield-v2/
https://sixfab.com/product/quectel-ec25-mini-pcle-4glte-module/
hello, how do i get [SERVER URL]/[STREAM NAME]?
hey,
Here is the tutorial for getting SERVER URL and STREAM NAME.
https://www.facebook.com/help/587160588142067?helpref=search&sr=4&query=facebook%20live%20stream
Excellent tutorial! Works perfectly for YouTube.
For Facebook, if you get a “BAD_AUTH” / “Operation not permitted” error, try adding quotes around the RTMP server string that you enter in the final step.
*Example error message:*
Server error: Error publishing stream: code=9, msg=ERR, BAD_AUTH, URL=Domain: live-api-s.facebook.com, url: /rtmp/1234567890?ds=1
rtmp://live-api-s.facebook.com:80/rtmp/1234567890?ds=1: Operation not permitted
*Solution*
raspivid -o – -t 0 -vf -hf -fps 30 -b 6000000 | ffmpeg -re -ar 44100 -ac 2 -acodec pcm_s16le -f s16le -ac 2 -i /dev/zero -f h264 -i – -vcodec copy -acodec aac -ab 128k -g 50 -strict experimental -f flv “[SERVER URL]/[STREAM NAME]”
Credit: https://raspberrypi.stackexchange.com/questions/54756/ffmpeg-raspberry-pi-to-facebook-live-stream
Thank you for your feedback.
What about if you want to broadcast to your own server?
You will need your SERVER NAME and SERVER URL.
Would this work for MQTT Servers?
Hello, I’m interested to your 3g/4g shield, plus the EC25-E module, plus the LTE full band BCB antenna…. However it seems that this shield can be controlled only by AT commands. Is it correct? On the other hand, currently I’m simply looking for a HAT board that could simply provide 3g or 4g connectivity (like as commercial internet key, but with a higher level of stablility). Do you think your shield satisfy my requirements?
If you are looking for internet connection every time you open your Raspberry Pi. Then you can follow these simple installation steps from once.
Tutorial link https://sixfab.com/qmi-interface-with-3g-4g-lte-base-shield-v2/
Hello my team and I are receiving the error of protocol not found when we are trying to stream over to Facebook live any suggestions or comments on how we can fix the issue would be greatly appreciated.
Hello,
Did you check if you have an active internet connection?
Which interface are you using for internet connection?
Could you please share the whole log?
ffmpeg version N-93640-ga087764847 Copyright (c) 2000-2019 the FFmpeg developers
built with gcc 6.3.0 (Raspbian 6.3.0-18+rpi1+deb9u1) 20170516
configuration: –arch=armel –target-os=linux –enable-gpl –enable-libx264 –enable-nonfree
libavutil 56. 26.100 / 56. 26.100
libavcodec 58. 52.100 / 58. 52.100
libavformat 58. 27.103 / 58. 27.103
libavdevice 58. 7.100 / 58. 7.100
libavfilter 7. 49.100 / 7. 49.100
libswscale 5. 4.100 / 5. 4.100
libswresample 3. 4.100 / 3. 4.100
libpostproc 55. 4.100 / 55. 4.100
Guessed Channel Layout for Input Stream #0.0 : stereo
Input #0, s16le, from ‘/dev/zero’:
Duration: N/A, bitrate: 1411 kb/s
Stream #0:0: Audio: pcm_s16le, 44100 Hz, stereo, s16, 1411 kb/s
mmal: Cannot read camera info, keeping the defaults for OV5647
mmal: mmal_vc_component_create: failed to create component ‘vc.ril.camera’ (1:ENOMEM)
mmal: mmal_component_create_core: could not create component ‘vc.ril.camera’ (1)
mmal: Failed to create camera component
mmal: main: Failed to create camera component
mmal: Camera is not detected. Please check carefully the camera module is installed correctly
[h264 @ 0x2bd7db0] Could not find codec parameters for stream 0 (Video: h264, none): unspecified size
Consider increasing the value for the ‘analyzeduration’ and ‘probesize’ options
Input #1, h264, from ‘pipe:’:
Duration: N/A, bitrate: N/A
Stream #1:0: Video: h264, none, 25 tbr, 1200k tbn, 50 tbc
Codec AVOption g (set the group of picture (GOP) size) specified for output file #0 (rtmps://live-api-s.facebook.com:443/rtmp/]/[888957638120330?s_sw=0) has not been used for any stream. The most likely reason is either wrong type (e.g. a video option with no video streams) or that it is a private option of some encoder which was not actually used for any stream.
rtmps://live-api-s.facebook.com:443/rtmp/]/[888957638120330?s_sw=0: Protocol not found
We manged to fix the camera issue, but it doesn’t seem to like the [Stream URL]/[Stream Name] part of the command. We are always met with “Protocol not found”. Are brackets included or not?
Hi, I’m wondering if this streams audio as well? Ordered the 3G/4G LTE kit .Thanks
Hello,
Yes, it can stream audio. But you can not make any voice call with the kit/shield.
How can I control it remotely? Will it receive sms?
Is there a way to also record the stream to the sd card (looped video)??
I guess you’re too busy to reply. I’ll be reviewing this product online as well as reviewing the quality of tek support offered.
I have QMI running on my RPI 4 and i get error when doing setup for this
cd /usr/src
git clone git://git.videolan.org/x264
git clone git://git.videolan.org/x264
fatal: could not create work tree dir ‘x264’: Permission denied
Whats is wrong here, sudo in front of git wont help
Hello Martin,
We used 3rd party software in this tutorial. Unfortunately, we do not support 3rd party software problems.
I suggest you look at other tutorials. For example: https://www.makeuseof.com/tag/live-stream-youtube-raspberry-pi/
Use git clone https://code.videolan.org/videolan/x264.git
