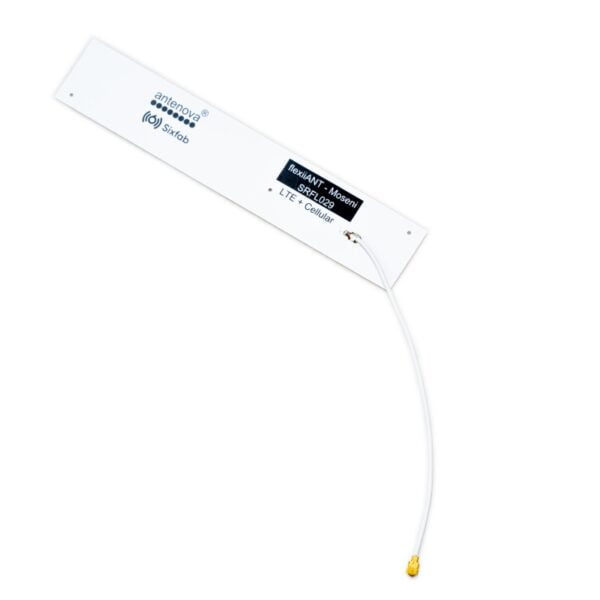

LTE Full Band PCB Antenna – u.FL Plug – 100mm

$6.45

This 4.6dBi peak gain full band LTE antenna has self-adhesive, 100mm cable with u.FL connector. A great option for 3G/4G-LTE applications. It works with EC25UC20 modules, Cellular IoT Application Shields perfectly.

134 in stock

SKU: S77 Category: Tags: , , ,

Description

This 100mm long cable flex PCB (FPC) antenna has great antenna gain while using in 3G/4G-LTE applications. It’s slim and can be attached to a surface by its own 3M adhesive tape.

  • 50-ohm impedance
  • 2G/3G/4G coverage
  • Supported frequency range: 698~960/1710~2690MHz
  • LTE 700, GSM850, GSM900, DCS1800, PCS1900, WCDMA2100, LTE B7 (2500-2690 MHz), LTE B40 (2300 – 2400 MHZ)
  • FPC Dimension: 110*20*0.15mm
  • Operating temperature: -40°C to +85°C
  • u.FL(IPEX) connection
  • 100mm cable length
  • 3M Self-adhesive

Reviews

There are no reviews yet.

Be the first to review “LTE Full Band PCB Antenna – u.FL Plug – 100mm”

Your email address will not be published. Required fields are marked *

Questions and answers of the customers

  1. 0 votes
    Answered by the admin We do not recommend it.
  2. 0 votes
    Answered by the admin Hi, This antenna has 3dBi peak gain which works fine with the mentioned module. If your location has very weak signal strength then you will need to look for a powerful antenna. The antenna is connected to the module via the uFL ports. EC25 antenna ports
