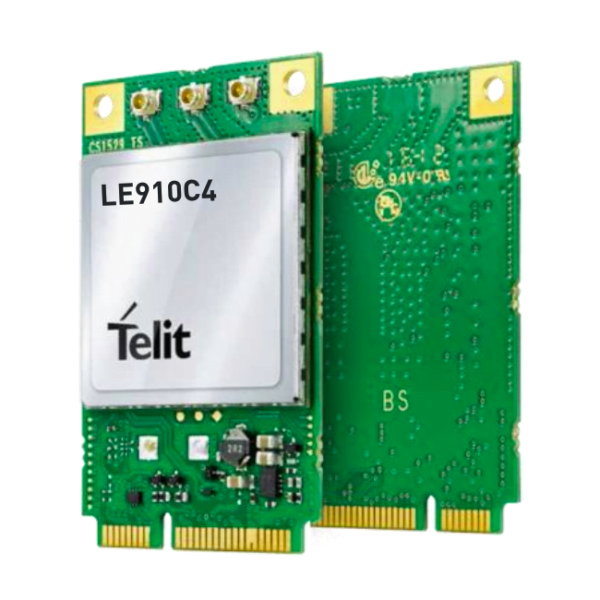

Telit LE910C4 Mini PCIe LTE CAT4 Module

This product only includes the Telit LE910C4 Mini PCIe CAT4 LTE Module. In order to use this with a Raspberry Pi, you need to use a Base HAT, LTE and GPS/GNSS antennas.

$50.15

Sixfab SIM

Sixfab SIM is a cellular connectivity solution for connecting your IoT devices with the best global networks. You can activate and use your SIM card in a few minutes, without any contract or commitment.

Description

This Telit LE910C4 Mini PCIe is an LTE category 4 module adopting the standard PCI Express MiniCard form factor (Mini PCIe). It is optimized for LTE low category networks and is available in single-mode and 3G fallback. After installing this Mini PCIe module to 3G/4G & LTE Base HAT, cellular connection can be established to Raspberry Pi. Only USB communication is available for this module on Base HAT.



Ask a Question

Features

  • LTE FDD Cat.4, 3GPP release 10 compliant
  • Rx Diversity and MIMO DL 2×2
  • Single Rx option
  • SMS over IMS
  • Built-in UDP/TCP/FTP/SMTP stack
  • IPv4/IPv6 stack
  • Control via AT commands according to 3GPP TS 27.005, 27.007 and Telit Custom AT commands
  • OMA-DM Telit Software Management
  • Simultaneous support of GPS, Glonass, Bei-dou, Galileo, QZSS

Key Benefits

  • Standard Mini PCIe Data-card form factor
  • Best-in class 3GPP rel10 platform
  • Easy to integrate with peripherals and actuators using USB 2.0 HS and user-definable GPIOs
  • Battery-friendly 1.8V GPIO
  • Ideal platform for IoT applications and mobile data and computing devices with ultra-compact design and extended operating temperature range
  • Internet friendly with integrated TCP/IP and UDP/IP stacks,
  • Simple drop-in migration and technology design reuse path to 2G and 3G with any xE910 module
  • Over-the-Air firmware update

Variants

Frequencies

LE910C4-NFLE910C4-EULE910C4-AP
4G Bands(MHz): B12, B14, B4, B2, B5, B13, B66, B71
3G Bands(MHz): B2, B4, B5
4G Bands(MHz): B1, B3, B7, B8, B20, B28A
3G Bands(MHz): B1, B3, B8
2G Bands(MHz): B3, B8
4G Bands(MHz): B1, B3, B5, B8 B9, B18(B26), B19, B28
3G Bands(MHz): B1, B5, B6 B19, B8

Data Speed

  • LTE Cat.4
    • Uplink up to 50 Mbps
    • Downlink up to 150 Mbps
  • DC-HSPA+
    • 42 Mbps (with 3G fallback)

Key Applications

  1. Smart Metering
  2. High-speed GPS Tracking
  3. Environmental Monitoring
  4. Smart City & Agriculture Applications
  5. Smart Parking
  6. Security & Asset tracking
  7. Alarm System
  8. Automotive & Transportation

Electrical

  • Supply voltage
    • Nominal: 3.3 VDC
    • Range: 3.3 – 4.2 VDC

Approvals

  • FCC /IC, PTCRB , GCF (North America)
  • RCM (Australia)
  • JRL/JTBL(Japan)
  • RED/GCF (Europe)
  • CCC (China)

Environmental

  • Dimensions 51 x 30 x 3.2 mm
  • Temperature Range -40°C to +85°C
  • REACH and RoHS compliant

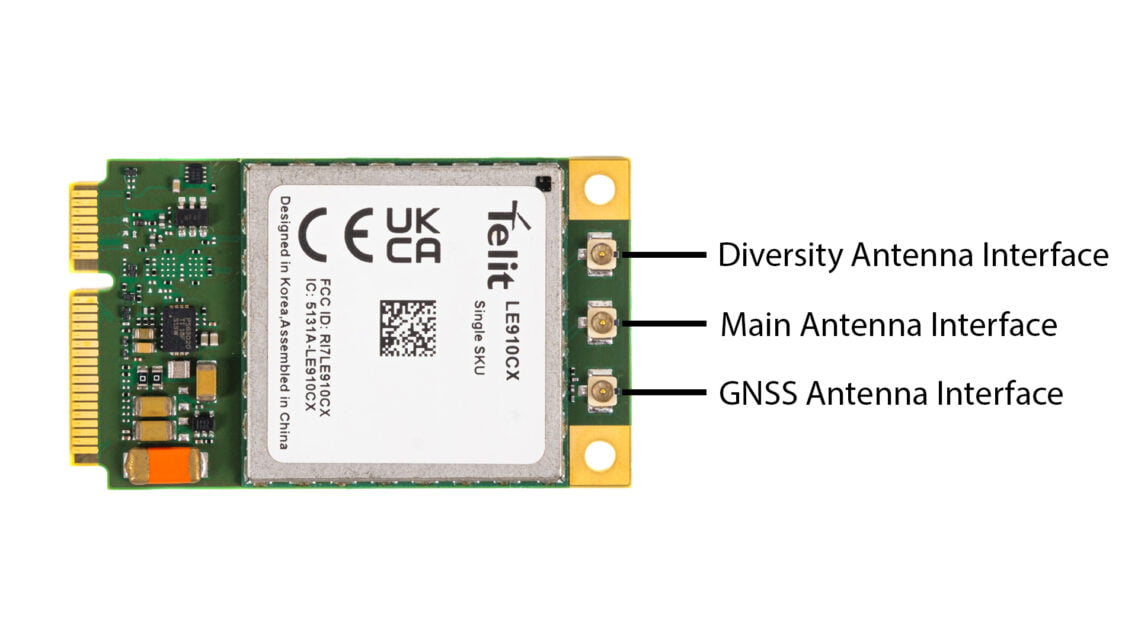

Antenna Interfaces

Package Includes

  • 1x Telit LE910C4 Mini PCIe CAT 4 Module

Technical Documentation

Telit LE910Cx Mini PCIe Series Datasheet
Telit LE910Cx Software User Guide
Telit LE910Cx – mPCIe HW Design Guide
Telit LE910Cx AT Command Reference R17
Telit LE910Cx/ME910C1/ML865C1/NE910C1 A-GPS Application Note R3
Telit LE910Cx PSM Application Note R0
Telit SSL/TLS User Guide R22
Telit LE910C1/LE910C4 Audio over USB Application Note R2
Using NetworkManager with Telit Modems Application Note
Using ModemManager with Telit Modems Application Note
Telit IP Easy User Guide R26
Telit 2G 3G 4G Registration Process Application Note R3
Telit LE910Cx SGMII & SDIO Design Guide

Driver

Telit Modules Linux USB Drivers User Guide
Telit LE910Cx Linux Device Driver Application Note
Telit USB Drivers for Windows Desktop 1.13.0000

Zip archive with Telit cellular modules USB drivers installers for Windows 7, 8.x, 10 both x86 and x64 system architectures (Non WHQL certified drivers).

Telit WHQL Windows 10 USB Drivers Installer V.2.19.0002

This archive contains the Windows 10 WHQL certified Telit module drivers for both x86 and x64 system platforms.

Telit WHQL Windows 11 USB Drivers Installer V.11.01.0002

This archive contains the Windows 11 WHQL certified Telit module drivers for both x86 and x64 system platforms.

Firmware

Telit LE910C4-NF Firmware V.25.21.663 TFI Windows Updater
Telit LE910C4-EU Firmware V.25.21.673 TFI Windows Updater
Telit LE910C4-AP Firmware V.25.21.681 TFI Windows Updater

Tools

Telit AT Controller XFP tool for Windows

This archive contains the Telit AT controller tool as well as XFP firmware update tool for Microsoft Windows systems.
It can be used to troubleshoot, test and command the Telit cellular module in a graphical interface.
