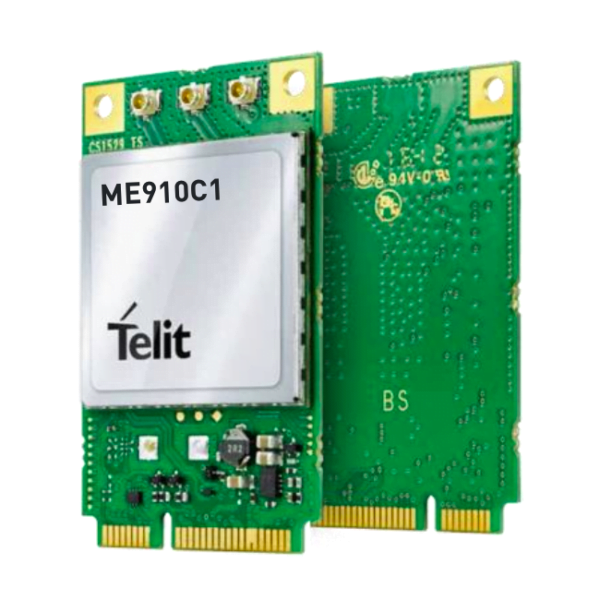

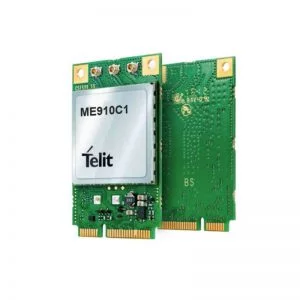

Telit ME910C1-WW Mini PCle LTE-M & NB-IoT Module

Description

The ME910C1 is the Category M1/NB1 evolution of the Telit xE910 Series of LTE modules. Specified in the approved Release 13 of the 3GPP standard, Cat M1/NB1 devices are specifically tailored for IoT applications, offering optimized power consumption and enhanced coverage.

The ME910C1 is an LTE UE Category M1/NB1 device with maximum downlink and uplink data rate in the range of 300kbps. This next generation of products supports the new features specified by 3GPP to boost IoT applications based on Raspberry Pi, such as the Power Saving Mode (PSM) and the extended Discontinuous Reception (eDRX), which allow the devices to wake up periodically to deliver only very small amounts of data to the network and then go back to sleep for most of the time, thus allowing longer battery operation. Enhanced coverage, with up to +15dB/+20dB in maximum coupling loss (MCL) compared to the other cellular technologies, is also one of the key benefits of this new LTE flavour. LTE Cat M1/NB1 devices are therefore optimized in cost, size and power consumption compared to higher UE categories. With worldwide coverage advantage, it makes the ME910C1 the perfect platform to enable a quick implementation of LTE technology in IoT/M2M where low cost and low power are more relevant than high speed.

Ask a Question

Features

• Worldwide Coverage
• LTE UE Category M1/NB1 3GPP release 13 compliant
• 2G fallback support
• Embedded GNSS (GPS, GLONASS, Beidou, Galileo)
• Single Rx, single LTE antenna
• 3GPP Rel. 12 Power Saving Mode (PSM)
  3GPP Rel. 13 Extended Discontinuous Reception (eDRX)
  3GPP Rel. 13 Extended coverage
• SMS
• IPv4/IPv6 stack with TCP and UDP protocol
• OMA Lightweight M2M (LWM2M)
• Regulatory: PTCRB, GCF, RED, FCC/IC, RCM, Jate, Telec, CCC
• Certification: AT&T, Verizon, NTT DoCoMo, Deutsche Telekom, Anatel, Telstra, Ifetel, Rogers, Telus, US Cellular
• REACH and RoHS compliant
• Temperature Range: -40 °C to +85 °C
• Dimensions: 51 x 30 x 3.2 mm

Key Benefits

• Standard mini PCIe data card form factor
• Best-in-class 3GPP Rel. 13 platform
• Easy to integrate with peripherals and actuators using USB 2.0 HS, UART and user-definable GPIOs
• Battery-friendly 1.8 V GPIO
• Internet friendly with integrated TCP/IP and UDP/IP stacks
• Simple drop-in migration and technology design reuse path to 2G and 3G with any xE910 module
• Firmware Over-the-Air (FOTA) update
• Benefit from Rel. 13 features for LTE-M and NB-IoT, such as Power Saving Mode (PSM), extended Discontinuous Reception (eDRX), enhanced coverage

OneEdgeTM Features

Telit offers ME910C1 mini PCIe with OneEdge, a software suite integrated with deployment and management tools to address the complexity expected with the exponential growth in the number of IoT devices.
The following key components are included:

• Lightweight M2M protocol enables comprehensive device management, FOTA updates and application enablement of low-power devices with the goal of more
  robust and secure connections.
• Telit simWISE™, a module-embedded SIM technology, enables reduced footprint, streamlined manufacturing and logistics, and secure communications for connected devices.
• Telit IoT AppZone can run code and applications directly inside the Telit module.
• Location services provide the position of devices even in the absence of a GNSS connection.

Data Speeds

• LTE Category M1
  • Uplink up to 375 kbps
  • Downlink up to 300 kbps
• LTE Category NB1
  • Uplink up to 62.5 kbps
  • Downlink up to 21 kbps
• EGPRS
  • Uplink up to 236 kbps
  • Downlink up to 296 kbps

Key Applications

1. Smart Metering
2. High-speed GPS Tracking
3. Environmental Monitoring
4. Smart City & Agriculture Applications
5. Smart Parking
6. Security & Asset tracking
7. Alarm System
8. Infrequent Data Transfer

Electrical

• Supply voltage
  • Nominal: 3.3 V dc
  • Range: 3.0-3.6 V dc

Approvals

• RED (Europe)

Environmental

• Dimensions: 51 x 30 x 3.2 mm
• Temperature Range: -40 °C to +85 °C
• REACH and RoHS compliant

Antenna Interfaces

Antenna Recommendations

Package Includes

• 1x Telit Mini PCIe CAT M1&NB1 Global Module
